Switches

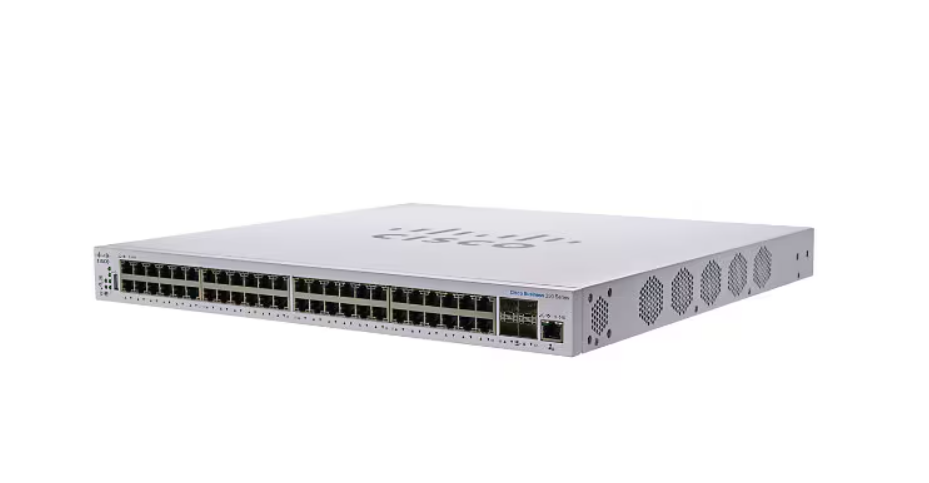

Cisco Business 350 Series CBS350-48XT-4X – switch – 48 ports – managed – rack-mountable
Quick tech specs
- 48XT-4X
- L3
- 48 x 10GBase-T + 4 x 10 Gigabit SFP+
- Switch
- managed
- rack-mountable
AED37,099.00
Know your gear
The Cisco Business CBS350-48XT-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
| Category | Specification |
|---|
| Overview |
| Brand | Cisco |
| Product Line | Cisco Business 350 Series |
| Model | CBS350-48XT-4X |
| Manufacturer | Cisco Systems |
| Processor |
| Clock Speed | 800 megahertz |
| Processor Brand | ARM |
| Memory |
| Flash Memory Installed | 256 megabyte |
| RAM Installed | 512 megabyte |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Features | 802.1x authentication, ARP support, BOOTP support, BPDU Guard, Broadcast Storm Control, Cable test, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DNS client, DoS attack prevention, Dual image support, DAD, DAI, Firmware upgradable, Flow control, GVRP, HOL Blocking Prevention, IP source guard, IPMB, IPv6 support, ISATAP tunnel support, LACP support, LLDP support, LLDP-MED, Loopback detection, MIB, Multicast Storm Control, MVR, PVST+, PVE, QoS, RA guard, RPVST+, Reset button, SCT, SSD, SmartPort technology, SNTP support, STP Root Guard, Syslog support, ToS, UDLD, Unknown Storm Control, UDP, VLAN support, VSDP, WRR |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 2KB |
| MAC Address Table Size | 16K entries |
| Manageable | Yes |
| Max Units In A Stack | 4 |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, RSTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP |
| Routing Protocol | CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, Policy-based routing (PBR), RSTP, Static IPv4 routing, Static IPv6 routing, STP |
| Stackable | Yes |
| Status Indicators | Link/activity/speed, Status |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 1 x USB Type A, 4 x 10GBase-X SFP+ uplink, 48 x 10GBase-T RJ-45 |
| Port Quantity | 48 |
| Port Type | 10GBase-T |
| Ports Type (2nd) | 10 Gigabit SFP+ |
| Power |
| Frequency | 50/60 hertz |
| Required Voltage | AC 100-240 volt |
| Technical Information |
| Encryption | SSL |
| Humidity Range Storage | 10 – 90% (non-condensing) |
| Max Operating Temperature | 122 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -13 degree Fahrenheit |
| MTBF | 287,135 Hours |
| Operating Humidity | 10 – 90% (non-condensing) |
| Product Information |
| Authentication Method | RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+ |
| Capacity | ACL rules: 1024, Buffer capacity (MB): 10, MSTP instances: 8, RPVST+ instances: 126, VLANs supported: 4094 |
| Country | Canada, Chile, Colombia, Latin America, Mexico, United States |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding performance (64-byte packet size): 755.81 Mpps, Switching capacity: 1040 Gbps |
| Ports (2nd) Quantity | 4 |
| Rack Mounting Kit | Included |
| Dimensions & Weight |
| Height | 1.7 inch |
| Weight | 16.07 lbs |
| Width | 17.3 inch |
| Depth | 17.7 inch |
| Physical Characteristics |
| Color Category | White |
| Certifications & Listings |
| Compliant Standards | CSA 22.2, FCC CFR47 Part 15 B Class A, UL 60950, USGv6 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
