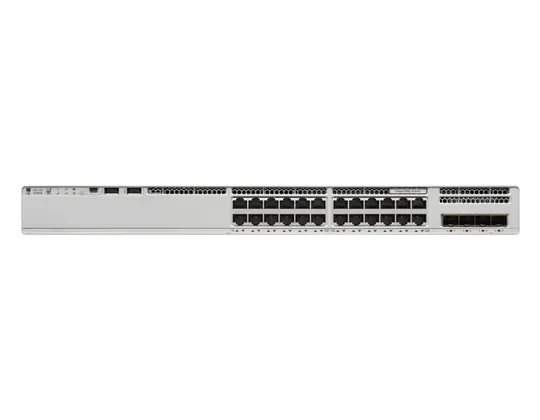

Cisco C9200-24PXG-E network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey


Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Essentials

28,599.00 د.إ

Highlights

Extend Intent-Based Networking Everywhere CiscoĀ® CatalystĀ® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified. As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey. Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

SKU: C9200-24PXG-E Category: Tag:
Feature Specification
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Web-based management Y
Traffic classification Y
ARP inspection Y
Configuring Location Settings (CLI) Y
MIB support BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-F
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity 24
Power connector AC-in jack
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Y
Copper ethernet cabling technology 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Full duplex Y
IP routing Y
Routing entries 3000
Flow control support Y
Spanning tree protocol Y
VLAN support Y
Number of VLANs 1024
MAC address table 16000 entries
Jumbo frames support Y
Jumbo frames 9198
Access Control List (ACL) Y
Security algorithms 128-bit AES
Multicast support Y
Multicast MAC address table 1000 entries
IPv4 multicast entries 3000
IPv6 multicast entries 1500
Management protocols SNMPv1/v2c/v3
Routing protocols CDP, EIGRP, OSPF, RIP, VRRP
Product colour Grey
Electromagnetic compatibility 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
Certification RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
Memory type DRAM
Internal memory 2000 MB
Flash memory 4000 MB
Harmonized System (HS) code 85176990
Power supply included Y
Redundant power supply (RPS) support Y
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Input current 12 – 6 A
Power consumption (typical) 125 W
Power over Ethernet (PoE) Y
Operating temperature (T-T) -5 – 45 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Operating altitude 0 – 3000 m
Width 445 mm
Depth 350 mm
Height 44 mm
Weight 5.5 kg
