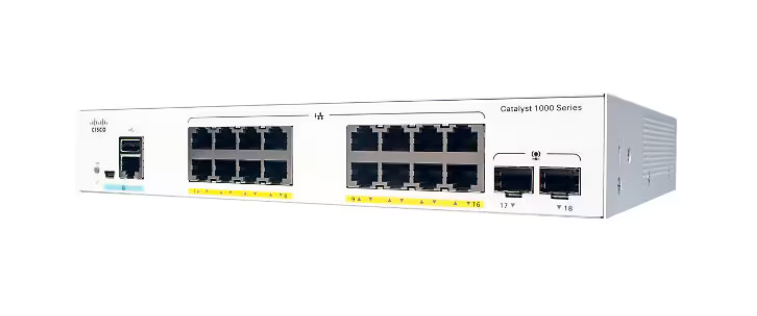

Cisco Catalyst 1000-16T-2G-L – switch – 16 ports – managed – rack-mountable


Quick tech specs

  • 16T-2G-L
  • managed
  • rack-mountable
  • Switch
  • 16 x 10/100/1000 + 2 x Gigabit SFP (uplink)

3,799.00 د.إ

Know your gear

The Cisco Catalyst 1000-16T-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible, and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Category: Tag:
Category Detail
Overview
Brand Cisco
Product Line Cisco Catalyst
Model 1000-16T-2G-L
Manufacturer Cisco Systems
Processor
Clock Speed 800 megahertz
Processor Brand ARM
Memory
Flash Memory Installed 256 megabyte
RAM Installed 512 megabyte
Network & Communication
Compliant Standards Bluetooth 4.0, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, ACL support, ARP support, AAA, Auto-uplink, BOOTP support, BPDU Guard, Broadcast Storm Control, CoS, DHCP snooping, DiffServ Code Point support, Dying Gasp support, Dynamic Trunking Protocol support, Energy Efficient Ethernet, Fanless, IGMP filtering, IDS, IP source guard, LACP support, LLDP support, Loopback detection, MAB, MAC Address Notification, MIB, Multicast Storm Control, NEAT, PAgP support, Proxy ARP, QoS, PVRST+, sFlow, SRR, SmartPort technology, STRG, SPAN, Unicast Storm Control, UDLD, UDP, VTP, Weighted Tail Drop
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 10240 bytes
Manageable Yes
Ports 16
Product Type Switch
Remote Management CLI, DHCP, HTTP, ICMP, NTP, RADIUS, RMON 1, RMON 2, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol IGMP, MLD, MLDv2, MSTP, RSTP, STP
Status Indicators Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x management RJ-45, 1 x mini-USB Type B, 1 x USB Type A, 16 x 1000Base-T RJ-45, 2 x 1000Base-X SFP uplink
Port Quantity 16
Port Type 10/100/1000
Ports Type (2nd) Gigabit SFP (uplink)
Power
Frequency 50 – 60 hertz
Power Supplies Installed 1
Technical Information
Humidity Range Storage 5 – 95%
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
Operating Humidity 5 – 90%
Product Information
Authentication Method Kerberos, RADIUS, SSH, SSH2, TACACS+
Capacity Active VLANs: 256, IPv4 routes (Multicast): 1024, IPv4 routes (static): 16, IPv4 unicast direct routes: 542, IPv4 unicast indirect routes: 256, IPv4/MAC security ACEs: 600, IPv6 groups (Multicast): 1024, IPv6 routes (static): 16, IPv6 security ACEs: 600, IPv6 unicast direct routes: 414, IPv6 unicast indirect routes: 128, MTU-L3 packet: 9198 bytes, SPAN sessions: 4, STP instances: 64, Unicast MAC addresses: 15360, VLAN IDs: 4094
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding bandwidth: 18 Gbps, Forwarding rate (64‑byte L3 packets): 26.78 Mpps, Switching bandwidth: 36 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Weight 3.92 lbs
Width 10.6 inch
Depth 10.7 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2011/65/EU, EN 300 386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-5, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A
