Cisco Catalyst 1000-24P-4X-L – switch – 24 ports – managed – rack-mountable

Add to Wishlist
Cisco Catalyst 1000-24P-4X-L – Switch – managed – 13 x 10/100/1000 (PoE+) + 11 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) – rack-mountable – PoE+ (195 W) – remanufactured

5,699.00 د.إ

Add to Wishlist

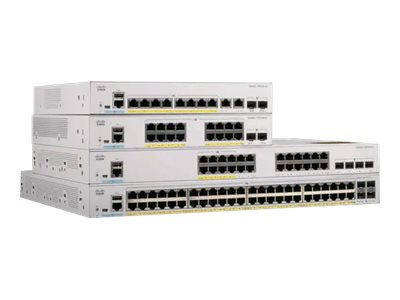

Cisco Catalyst 1000 series switches are fixed managed Gigabit Ethernet enterprise-class layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for critical IoT deployments. These switches deliver enhanced network security, network reliability, and operational efficiency for SMB organizations.

SKU: C1000-24P-4X-L-RF Category: Tag:



Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 13 x 10/100/1000 (PoE+) + 11 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 195 W
Performance Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate (64-byte L3 packets): 41.67 Mpps
Capacity Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status
Expansion / Connectivity Interfaces: 13 x 1000Base-T RJ-45 PoE+ – 15 W ¦ 11 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A
Power Internal power supply
Installed Qty 1
Voltage Required AC 100-240 V (50 – 60 Hz)
Miscellaneous MTBF: 2,026,793 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Pricing Type Remanufactured
Dimensions & Weight Width: 17.5 in ¦ Depth: 11.8 in ¦ Height: 1.7 in ¦ Weight: 8.11 lbs
