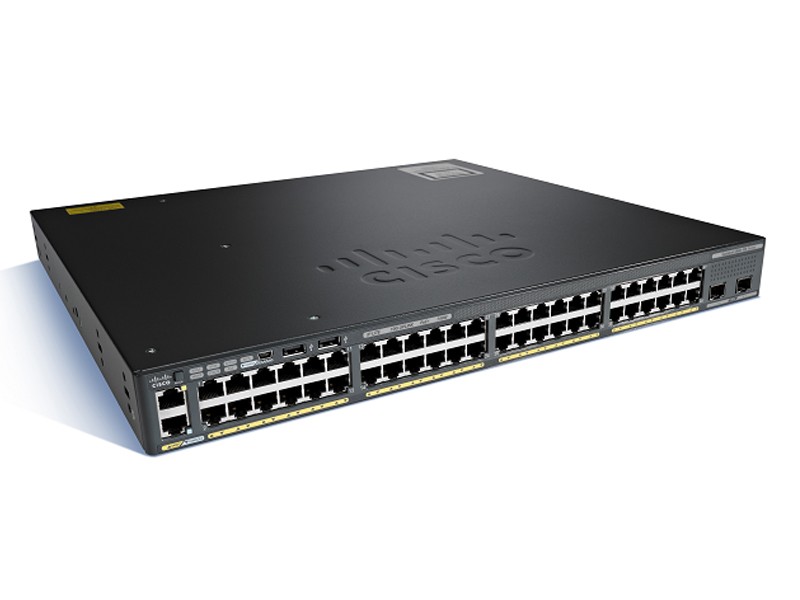

Cisco Catalyst 2960X Series 48 ports LAN Lite switch is comprised of 48 x Ethernet 10/100/1000 ports and 2 x 1G SFP uplink interfaces. LAN Lite image functions basic needs for layer 2 switching and does not support stacking.
WS-C2960X-48TS-LL Specification |
|
| Enclosure type | Rack-mountable – 1U |
| Ports | 48 x 10/100/1000 + 2 x 1G SFP Ports |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | None PoE |
| Forwarding bandwidth(Gbps) | 50Gbps |
| Maximum stacking number | None |
| Stack Bandwidth | None |
| Forwarding Performance | 104.2Mpps |
| Switching bandwidth | 100Gbps |
| Maximum active VLANs | 64 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status:Ā Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | None |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.46KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 11 Inches (27.9 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 8.9 lb (4.0 Kg) |
| Package Weight | 20.26 lb (9.19 Kg) |
| Rack Mounting Kit | optional |
| Ā MTBF in hours | 476,560 |
| Compliant Standards | āĀ IEEE 802.1D Spanning Tree Protocol āĀ IEEE 802.1p CoS Prioritization āĀ IEEE 802.1Q VLAN āĀ IEEE 802.1s āĀ IEEE 802.1w āĀ IEEE 802.1X āĀ IEEE 802.1ab (LLDP) āĀ IEEE 802.3ad āĀ IEEE 802.3af and IEEE 802.3at āĀ IEEE 802.3ah (100BASE-X single/multimode fiber only) āĀ IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports āĀ IEEE 802.3 10BASE-T |
| System software / license | |
| System software | IOS LAN Lite |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | āJumbo Frames
āVLANS āVoice Vlan āVTPv2 āCDPv2 āLLDP ā802.3ad LACP āPVST/PVST+ ā802.1W/802.1S āPort Fast/Uplink Fast āport CoS Trust and Override āScheduling āPriority Queuing āConfigure CoS Priority Queues āWeighted Tail Drop āDSCP transparency |
| Network security | āSSH, SSL and SCP
āRADIUS and TACACS+ āSNMPv3 crypto ā802.1x ā802.1x Accounting / MIB ā802.1x w/ port security ā802.1x w/Voice VLAN ā802.1x Guest VLAN ā802.1x VLAN assignment ā802.1x MAC-Auth Bypass āBPDU/Root Guard āPort Security āPrivate VALN Edge āStorm Control āBlock unknown unicast and multicast āIGMP Snooping āIGMP Filter/Throttle |
| Management and Troubleshooting | āAuto-MDOX
āTDR āUDLD āIP SLA Responder ālayer 2 / IP Traceroute āSPAN āRSPAN āExpress Setup āDevice Manager āCisco Network Assistant āSmartports + Advisor āTroubleshooting Advisor āDrag-and-drop Cisco IOS Upgrade āIP Address DHCP āAutoinstall with saved configuration āConfiguration Replace āDHCP Auto Image Upgrade āDHCP Port Based Allocation āError Disable MIB |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) | 23ĀŗF to 113ĀŗF
(-5ĀŗC to 45ĀŗC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ĀŗF to 104ĀŗF
(-5ĀŗC to 40ĀŗC) |
| Short-term exception at sea level* | 23ĀŗF to 131ĀŗF
(-5ĀŗC to 55ĀŗC) |
| Short-term exception up to 5000 feet (1500 m)* | 23ĀŗF to 122ĀŗF
(-5ĀŗC to 50ĀŗC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23ĀŗF to 113ĀŗF
(-5ĀŗC to 45ĀŗC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23Āŗ to 104ĀŗF
(-5ĀŗC to 40ĀŗC) |
| Storage temperature up to 15,000 feet (4573 m) | -13Āŗ to 158ĀŗF
(-25Āŗ to 70ĀŗC) |
| Operating altitude | Up to 10,000 Feet
(Up to 3000 Meters) |
| Storage altitude | Up to 13,000
(Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
