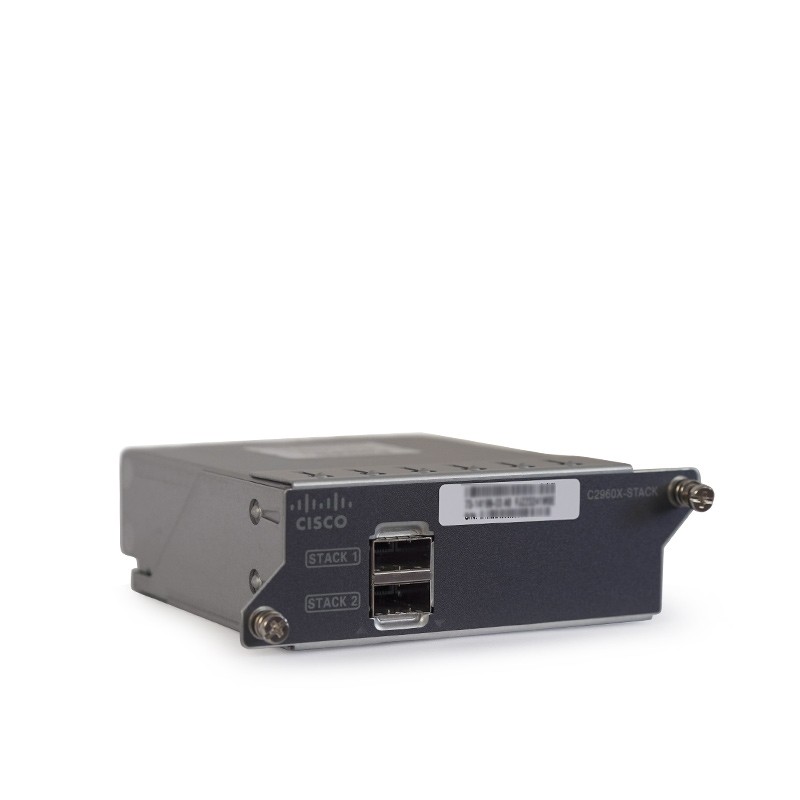

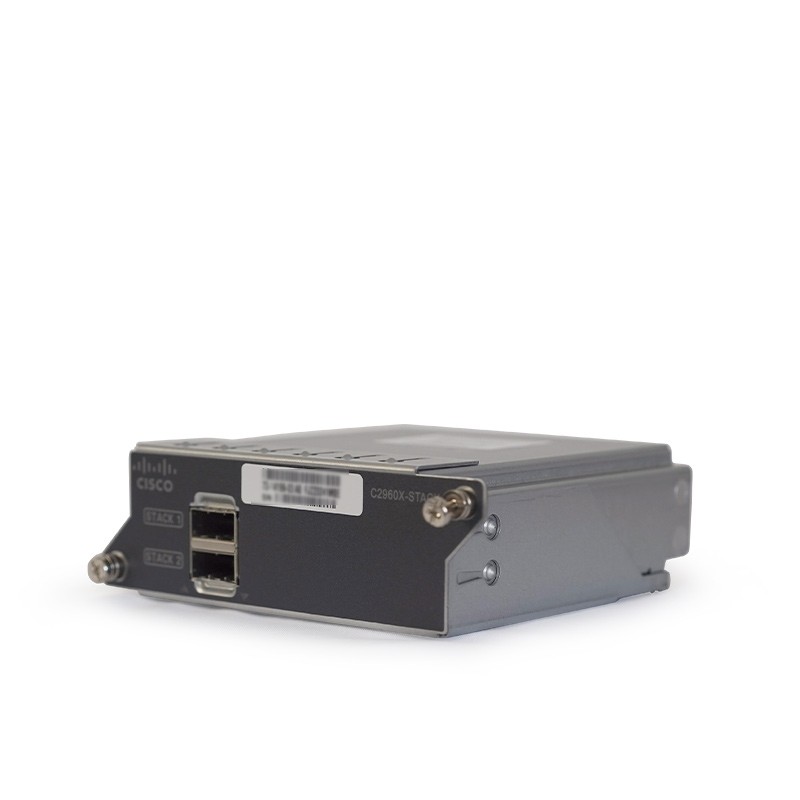

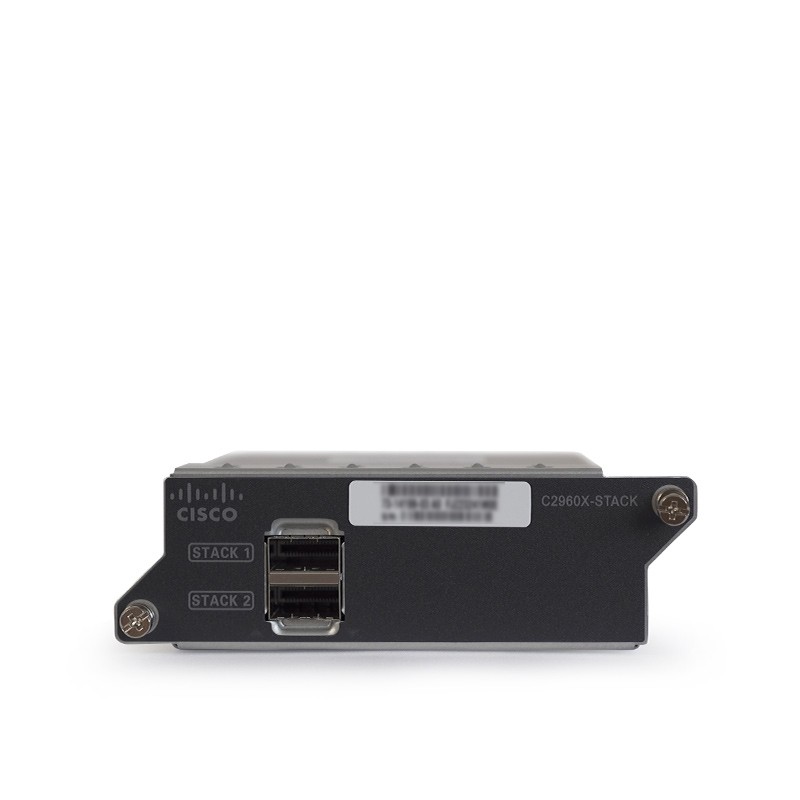

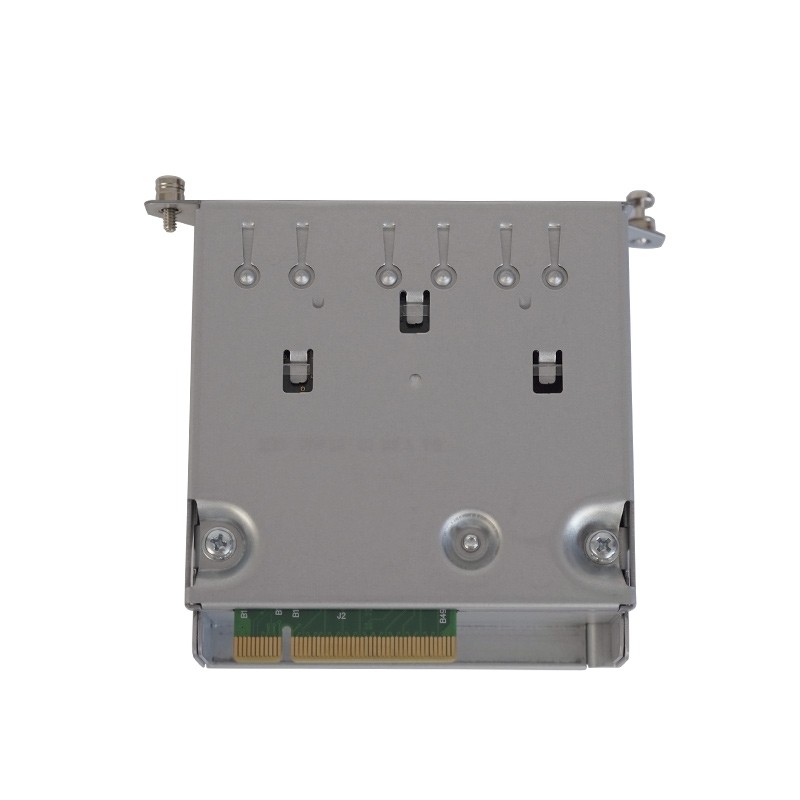

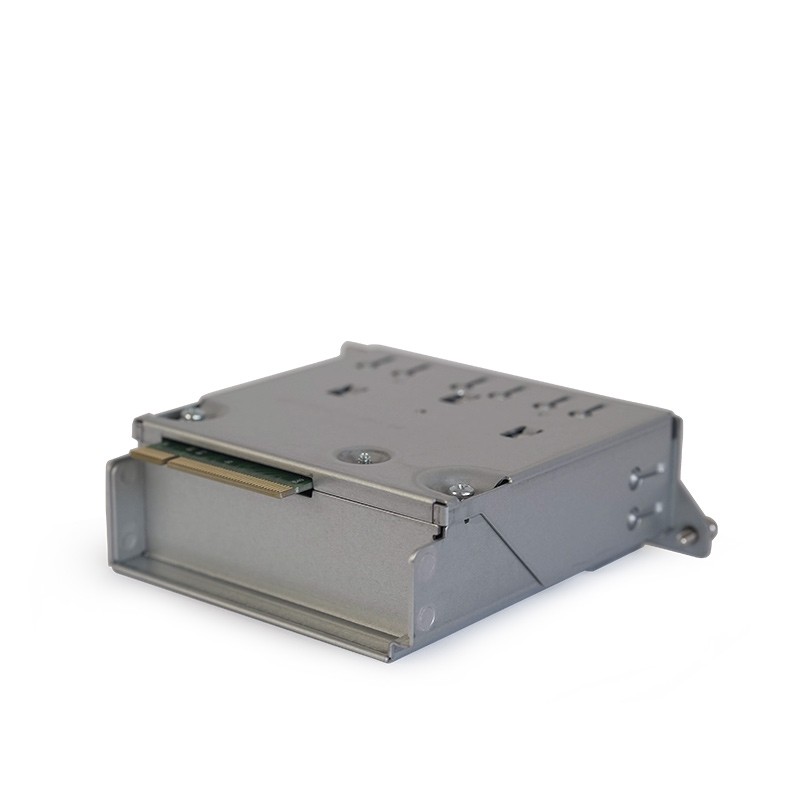

C2960X-STACK is a Cisco Catalyst 2960-X and 2960-XR Series Switches FlexStack Plus Stacking Module, which allows these switches stack with each other to offer flexible management.
Highlights
FlexStack-Plus is the name of the stacking technology used by the Cisco Catalyst 2960-X and 2960-XR Series switches. FlexStack-Plus is specific to the 2960-X and 2960-XR Series of switches.
Table 1 shows that with C2960X-STACK, the 2960-X and 2960-XR can support:
| Stacking Item | C2960-X | C2960-XR |
| Bidirectional stack bandwidth | 80Gbps | 80Gbps |
| Hot-swappable stack module | Yes | Yes |
| Max stack members | 8 | 8 |
| Supports FlexStack | Yes | No |
| Supports FlexStack-Plus | Yes | Yes |
C2960X-STACK Specifications |
|
| Type | FlexStack-Plus hot-swappable stacking module |
| Designed For | Catalyst 2960-X Series
Catalyst 2960-XR Series |
| Bidirectional stack bandwidth | C2960-X: 80Gbps
C2960-XR: 80Gbps |
| Hot-swappable stack module | C2960-X: Yes
C2960-XR: Yes |
| Max stack members | C2960-X: 8
C2960-XR: 8 |
| Supports FlexStack | C2960-X: No
C2960-XR: Yes |
| Supports FlexStack-Plus | C2960-X: Yes
C2960-XR: Yes |
| Net Weight | 1.6 Kg |
| Package Weight | 2.24 Kg |
