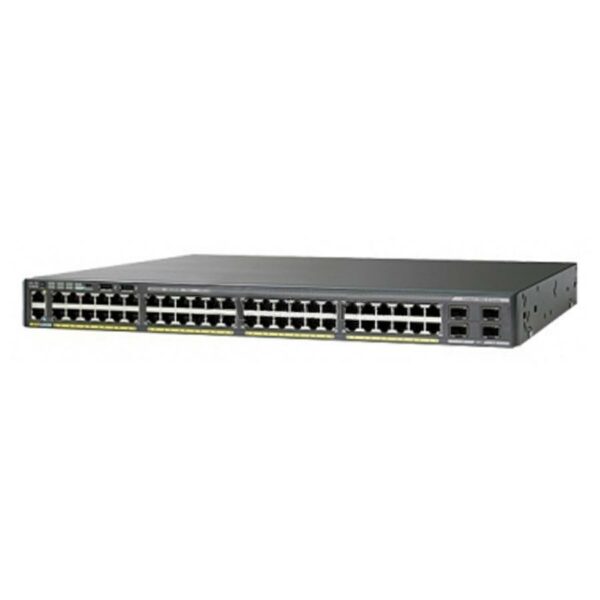

Cisco Catalyst 2960-XR series switches offer power resiliency with optional dual field-replaceable power supplies and IP Lite Cisco IOS software with dynamic routing and Layer 3 features. WS-C2960XR-48FPS-I is one of 2960-XR switches, IP Lite switch, supporting forty-eight 10/100/1000 Ethernet ports with POE+ and 4 x 1G SFP uplink interfaces. IP Lite Image enables basic access layer 3 routing features, such as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM stub, etc.
WS-C2960XR-48FPS-I Specification |
|
Enclosure type | Rack-mountable – 1U |
Ports | 48 x 10/100/1000 (POE+) + 4 x 1G SFP |
Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
Available PoE Power | 740W |
Forwarding bandwidth(Gbps) | 108Gbps |
Maximum stacking number | 8 |
Stack Bandwidth | 80G |
Forwarding Performance | 107.1Mpps |
Switching bandwidth | 216Gbps |
Maximum active VLANs | 1023 |
MAC Address Table Size | 16K (default) |
CPU | APM86392 600MHz dual core |
RAM | 512 MB |
Flash Memory | 128 MB |
Status Indicators | āĀ Per-port status:Ā Link integrity, disabled, activity, speed, and full duplex ā System status: System, RPS, PoE, Stack link status, link duplex, and link speed |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 FlexStack-Plus slot and 1 power redundant slot |
Stack Modules | C2960X-STACK |
Stacking cable | āĀ CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length ā CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length ā CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length |
Power supply | PWR-C2-250WAC |
Power Device | Power supply – redundant – plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 110V-240V |
Power Consumption Operational | 0.89kVA |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 16 Inches (40.8 cm) |
Height | 1.75 Inches (4.45 cm) |
Weight | 14.7 Pounds (6.7Kg) |
Package Weight | 38.56 Pounds (17.49Kg) |
Rack Mounting Kit | Optional |
Ā MTBF in hours | 230,860 |
Compliant Standards | āĀ IEEE 802.1D Spanning Tree Protocol āĀ IEEE 802.1p CoS Prioritization āĀ IEEE 802.1Q VLAN āĀ IEEE 802.1s āĀ IEEE 802.1w āĀ IEEE 802.1X āĀ IEEE 802.1ab (LLDP) āĀ IEEE 802.3ad āĀ IEEE 802.3af and IEEE 802.3at āĀ IEEE 802.3ah (100BASE-X single/multimode fiber only) āĀ IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports āĀ IEEE 802.3 10BASE-T āĀ IEEE 802.3u 100BASE-TX āĀ IEEE 802.3ab 1000BASE-T āĀ IEEE 802.3z 1000BASE-X āĀ RMON I and II standards āĀ SNMP v1, v2c, and v3 āĀ IEEE 802.3az āĀ IEEE 802.3ae 10Gigabit Ethernet āĀ IEEE 802.1ax |
System software / license | |
System software | IOS IP Lite |
license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
features | āĀ IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub) āĀ Advanced IP unicast routing protocols (OSPF for Routed Access) āĀ EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite. āĀ Equal-cost routing āĀ Policy-based routing (PBR) āĀ Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) āĀ Protocol Independent Multicast (PIM) |
Network security | āĀ MAC-based VLAN assignment enablesĀ āĀ Cisco TrustSec uses āĀ Comprehensive 802.1XĀ āĀ IPv6 First-Hop Security āĀ Device Sensor and Device ClassifierĀ Ā āĀ Cisco Trust Anchor Technology āĀ Cisco Threat DefenseĀ āĀ Private VLANs āĀ Unicast Reverse Path Forwarding (uRPF)Ā āĀ Multidomain Authentication āĀ Access Control Lists (ACLs)Ā āĀ Switched Port Analyzer (SPAN) āĀ Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) āĀ TACACS+ and RADIUS authenticationĀ āĀ MAC Address Notification āĀ Multilevel security on console accessĀ BPDU Guard āĀ Spanning Tree Root Guard (STRG)Ā āĀ IGMP filtering |
Management & Troubleshooting | āĀ Auto-MDOX āTDR ā UDLD ā IP SLA Responder
ā layer 2 / IP Traceroute ā SPAN ā RSPAN ā Express Setup ā Device Manager ā Cisco Network Assistant ā Smartports + Advisor ā Troubleshooting Advisor ā Drag-and-drop Cisco IOS Upgrade ā IP Address DHCP ā Autoinstall with saved configuration ā Configuration Replace ā DHCP Auto Image Upgrade ā DHCP Port Based Allocation ā Error Disable MIB |
Technical Support and Services | āĀ Cisco SMARTnet ServiceĀ āĀ Cisco Smart Foundation ServiceĀ āĀ Cisco Smart Care Service
āĀ Cisco SP Base ServiceĀ āĀ Cisco Focused Technical Support Services |
Environmental Ranges | |
Operating temperature up to 5000 ft (1500 m) | 23ĀŗF to 113ĀŗĀ (-5ĀŗC to 45ĀŗC) |
Operating temperature up to 10,000 ft (3000 m) | 23ĀŗF to 104ĀŗFĀ (-5ĀŗC to 40ĀŗC) |
Short-term exception at sea level* | 23ĀŗF to 131ĀŗFĀ (-5ĀŗC to 55ĀŗC) |
Short-term exception up to 5000 feet (1500 m)* | 23ĀŗF to 122ĀŗFĀ (-5ĀŗC to 50ĀŗC) |
Short-term exception up to 10,000 feet (3000 m)* | 23ĀŗF to 113ĀŗFĀ (-5ĀŗC to 45ĀŗC) |
Short-term exception up to 13,000 feet (4000 m)* | 23Āŗ to 104ĀŗFĀ (-5ĀŗC to 40ĀŗC) |
Storage temperature up to 15,000 feet (4573 m) | -13Āŗ to 158ĀŗFĀ (-25Āŗ to 70ĀŗC) |
Operating altitude | Up to 10,000Ā (Up to 3000 Meters) |
Storage altitude | Up to 13,000Ā (Up to 4000 Meters) |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
