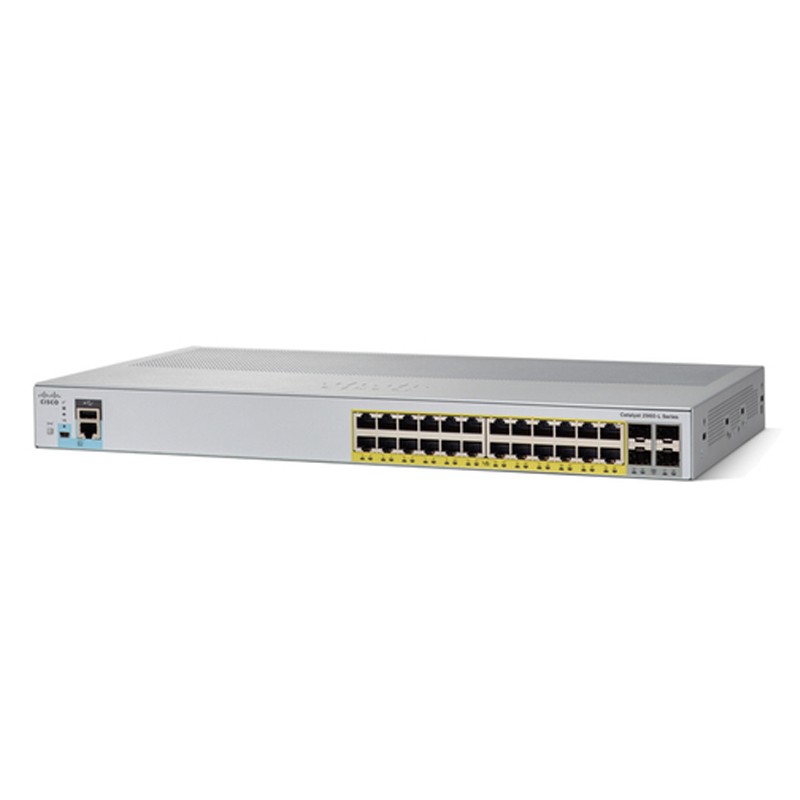

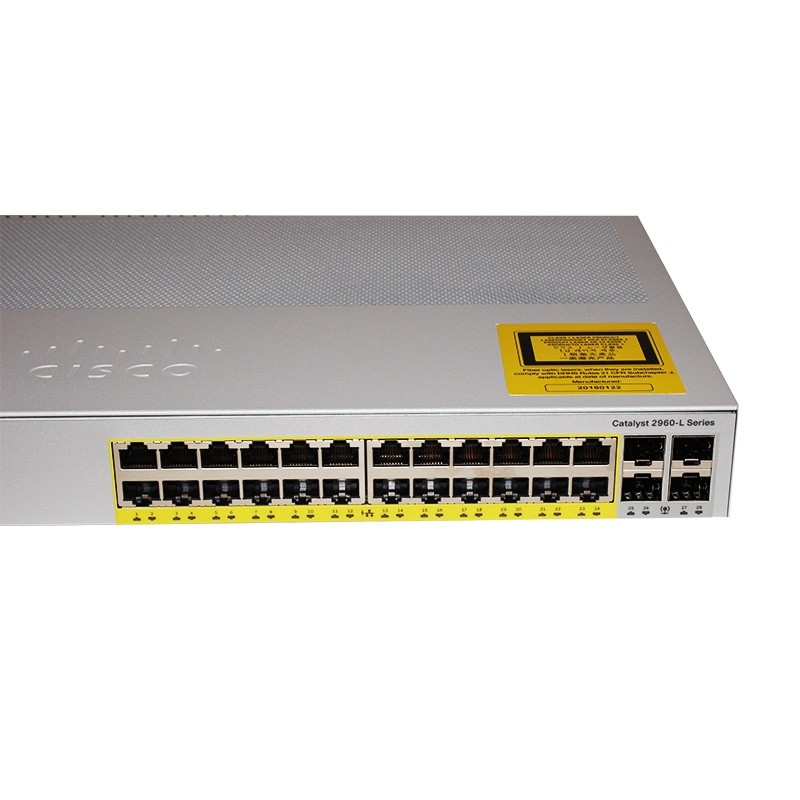

Cisco Catalyst 2960L 24 port GigE with PoE, 4 x 1G SFP, LAN Lite (Asia Pacific Part Number: WS-C2960L-24PS-AP)


Interface Types:Ā Ethernet RJ45, SFP

Electrical Interface:Ā Ethernet Gigabit – 1Gbps

Bays/Ports/Slots:Ā 24

Voltage:Ā 110-240V Multi

6,399.00 د.إ

Cisco WS-C2960L-24PS-LL Catalyst C2960-L Series 24 Ethernet 10/100/1000 PoE Ports & 4 SFP Managed Switch – Brand New

Cisco WS-C2960L-24PS-LL Catalyst C2960-L Series 24 Ethernet 10/100/1000 Power over Ethernet Ports & 4 Small Form‑Factor Pluggable Managed Switch – Brand New

Cisco Catalyst 2960-L Series Switches

Cisco CatalystĀ® 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOSĀ® Software features.

Product Highlights
Cisco Catalyst 2960-L switches feature:

  • 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding
  • 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
  • Power over Ethernet Plus (PoE+) support with up to 370W of power budget
  • Perpetual PoE provides uninterrupted power to connected devices even when the switch is booting
  • Fanless operation and operational temperature up to 45°C for deployment outside the wiring closet
  • Higher mean time between failure (MTBF) because they have no moving mechanical parts
  • Less than 11.5-inch depth fit in use cases with space limitation
  • Reduced power consumption and advanced energy management features
  • RJ45 and USB console access for simplified operations
  • Intuitive web UI for easy deployment and management
  • Over-the-air configuration and management via Bluetooth interface
  • Cisco IOSĀ® Software features
  • Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement
SKU: WS-C2960L-24PS LL Category: Tag:

WS-C2960L-24PS-LL Specification

Configurations
10/100/1000 Ethernet Ports 24
Uplink Interfaces 4 SFP
Available PoE Power 195W
Fanless Y
Dimensions (H x D x W) 1.73 x 10.45 x 17.5 in. (4.4 x 26.5 x 44.5 cm)
Net Weight 7.63 lb (3.46 kg)

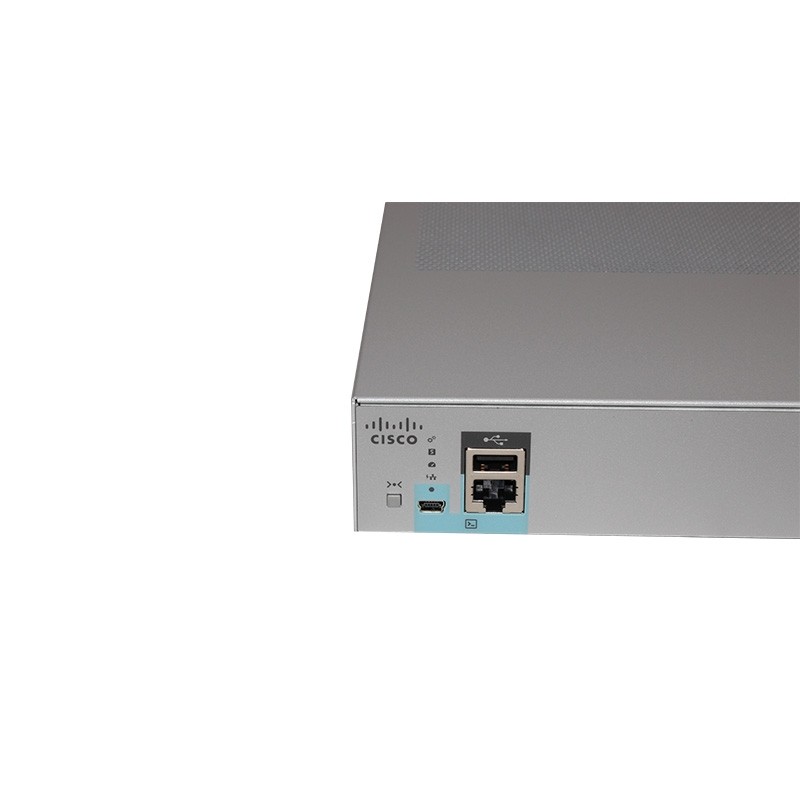

Console Ports
RJ45 Ethernet 1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
Memory and Processor
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 28 Gbps
Switching bandwidth 56 Gbps
Forwarding rate (64-byte L3 packets) 41.67 Mpps
Unicast MAC addresses 8K
Maximum active VLANs 64
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 1
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
MTBF in hours (Data) 2,412,947
MTBF in hours (PoE) 909,838
Environment
Operating temperature
Up to 5,000 ft 23ĀŗF to 113ĀŗF (–5ĀŗC to 45ĀŗC)
Up to 10,000 ft 23ĀŗF to 104ĀŗF (–5ĀŗC to 40ĀŗC)
Operating altitude 10,000 ft (3000m)
Operating relative humidity 5% to 90% at 40ĀŗC
Storage temperature –13Āŗ to 158ĀŗF (–25Āŗ to 70ĀŗC)
Storage altitude 15,000 ft (4500m)
Storage relative humidity 5% to 95% at 65ĀŗC
Storage altitude Minimum ambient temperature for cold start is 0°C (32°F)
Electrical PoE
Voltage (autoranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.21A to 0.26A
Power rating (maximum consumption) 0.24 kVA
Power consumption (watts)

0% traffic

10% traffic

100% traffic

Weighted average



25.9

32.9

32.9

30.6

Safety and Compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity EN55024, CISPR24, EN300386, KN24
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
Connectors and Interfaces
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex
System status: system, PoE, and link speed
Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
