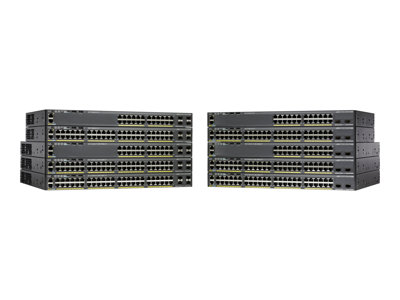

Cisco Catalyst 2960XR-48FPD-I – switch – 48 ports – managed – rack-mountable WS-C2960XR-48FPD-I

Availability:

10 in stock
Add to Wishlist

35,699.00 د.إ

10 in stock

Add to Wishlist

Cisco WS-C2960XR-48FPD-I Catalyst 2960 Xr Gige PoE Networking Device



Overview

Cisco Catalyst 2960-X series switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, it enables scalable, secure and energy-efficient business operations with intelligent services.

Network security

The Cisco Catalyst 2960-X series switch provides a range of security features to limit access to the network and mitigate threats.

Redundancy and resiliency

Cisco Catalyst 2960-X series switch offers a number of redundancy and resiliency features to prevent outages and help ensure that the network remains available.

Application visibility

Catalyst 2960-X series switch supports NetFlow Lite, which enables IT teams to understand the mix of traffic on their network and identify anomalies by capturing and recording specific packet flows.

Power management

The 2960-X switch offers a range industry leading features for effective energy efficiency and energy management.

Network management

The Cisco Catalyst 2960-X series switch offers a superior CLI for detailed configuration and administration. 2960-X series switch is also supported in the full range of Cisco network management solutions.

SKU: WS-C2960XR-48FPD-I Category: Tags: , ,

Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 2 x SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Switching capacity: 216 Gbps Forwarding performance: 130.9 Mpps
Capacity Virtual interfaces (VLANs): 1023
Jumbo Frame Support 9216 bytes
Max Units In A Stack 8
Routing Protocol OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Layer 2 switching, power over Ethernet (PoE), auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor : 600 MHz
RAM 512 MB
Flash Memory 128 MB
Status Indicators Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Expansion / Connectivity
Interfaces 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T – RJ-45 – RJ-45 24 ports (PoE+) / 48 ports (PoE) – 30 W 1 x console SFP+ – RJ-45 1 x mini-USB Type B management 2 x USB Type A 1 x 1000Base-TX RJ-45 management 2 x SFP+ uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1025 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Features Redundant Power System (RPS) connector
Miscellaneous
MTBF 231,590 hours
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386
Software / System Requirements
Software Included Cisco IOS IP Lite
Dimensions & Weight
Width 17.5 in
Depth 16.1 in
Height 1.8 in
Weight 14.55 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 95% (non-condensing)
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 95% (non-condensing)
General
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity Virtual interfaces (VLANs): 1023
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Features Layer 2 switching, power over Ethernet (PoE), auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus
Flash Memory 128 MB
Jumbo Frame Support 9216 bytes
Max Units In A Stack 8
Performance Switching capacity: 216 Gbps ¦ Forwarding performance: 130.9 Mpps
PoE Budget 740 W
Ports 48 x 10/100/1000 (PoE+) + 2 x SFP+
Power Over Ethernet (PoE) PoE+
Processor : 600 MHz
RAM 512 MB
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Routing Protocol OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
Status Indicators Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 16.1 in
Height 1.8 in
Weight 14.55 lbs
Width 17.5 in
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 23 °F
Min Storage Temperature -13 °F
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Interfaces 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T – RJ-45 – RJ-45 24 ports (PoE+) / 48 ports (PoE) – 30 W ¦ 1 x console SFP+ – RJ-45 ¦ 1 x mini-USB Type B management ¦ 2 x USB Type A ¦ 1 x 1000Base-TX RJ-45 management ¦ 2 x SFP+ uplink
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386
MTBF 231,590 hours
Power
Features Redundant Power System (RPS) connector
Installed Qty 1 (installed) / 2 (max)
Power Device Internal power supply
Power Provided 1025 Watt
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included Cisco IOS IP Lite
