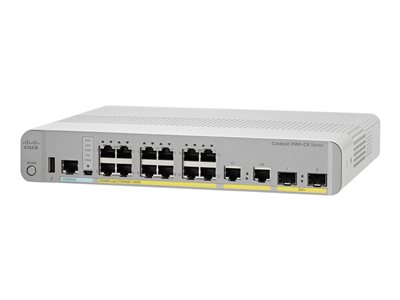

Cisco Catalyst 3560CX-12PD-S – switch – 12 ports – managed – rack-mountable – TAA Compliant


Cisco Catalyst 3560CX-12PD-S – Switch – managed – 12 x 10/100/1000 (PoE+) + 2 x combo SFP+ – desktop, rack-mountable, DIN rail mountable, wall-mountable – PoE+ (240 W) – TAA Compliant

د.إ11,199.00

An effective work environment encourages collaboration. That often means tearing down office walls to create open workspaces. With their quiet, fan-less design, the switches create many possibilities for designing workspaces. They can reside nearly anywhere outside your wiring closet. Install them in carpeted areas such as offices, conference rooms, classrooms, and retail stores for quick, flexible connections. Rearrange rooms and floors without changing your cabling infrastructure. Consolidate cabling for big savings. Rather than running multiple Ethernet cables from endpoints like IP phones and Wi-Fi access points to a wiring closet, you just connect devices over a few feet of cabling to a nearby 3560-CX switch. Then connect the compact switch to the wiring closet with a single Ethernet or fiber cable. Using this setup, a 200-room hotel using compact switches in guest rooms can eliminate up to 30 kilometers of cables.

SKU: WS-C3560CX-12PDS++ Category: Tag:
Enclosure Type Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U
Subtype Gigabit Ethernet
Ports 12 x 10/100/1000 (PoE+) + 2 x combo SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 240 W
Performance Forwarding performance: 34 Gbps
Forwarding performance (64-byte packet size): 50.6 Mpps
Capacity Virtual interfaces (VLANs): 1023
Jumbo Frame Support 9018 bytes
Routing Protocol RIP-1, RIP-2, static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, Shaped Round Robin (SRR), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Weighted Tail Drop (WTD)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
RAM 512 MB
Flash Memory 128 MB
Status Indicators Port status, port transmission speed, port duplex mode, system, link/activity
Expansion / Connectivity Interfaces: 12 x 1000Base-T RJ-45 PoE+ – 30 W, 1 x console RJ-45, 1 x mini-USB Type B management, 1 x USB Type A, 2 x 1000Base-T RJ-45 uplink, 2 x SFP+ uplink
Power Power Device: Internal power supply
Power Provided: 300 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 28.2 Watt
80 PLUS Certification 80 PLUS Silver
Miscellaneous Rack Mounting Kit: Optional
MTBF: 528,480 hours
Compliant Standards: GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1
TAA Compliant Yes
Software / System Requirements Software Included: Cisco IOS IP Base
Dimensions & Weight Width: 10.6 in
Depth: 9.4 in
Height: 1.7 in
Weight: 5.09 lbs
