Cisco Catalyst 3560CX-8XPD-S – switch – 8 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 8XPD-S
  • managed
  • desktop, rack-mountable, DIN rail mountable, wall-mountable
  • Switch
  • 8 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+
  • PoE+ (240 W)

20,399.00 د.إ

Add to Wishlist

Know your gear

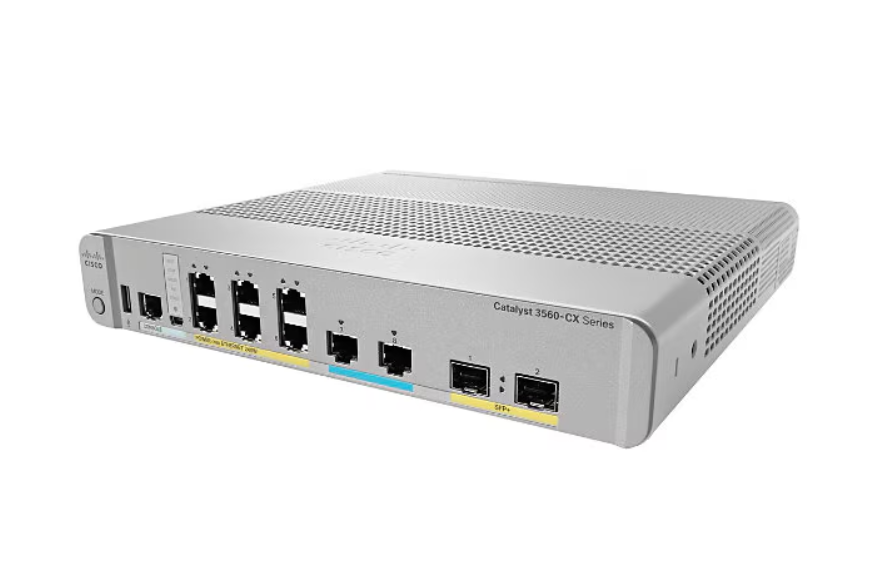

The Cisco Catalyst C3560CX-8XPD-S Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul, and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the data closet and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.
Category: Tag:
Category Details
Overview
Brand Cisco
Product Line Cisco Catalyst
Model 3560CX-8XPD-S
Manufacturer Cisco Systems
Memory
Flash Memory Installed 128 megabyte
RAM Installed 512 megabyte
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features Access Control List (ACL) support, ARP support, Auto-negotiation, BOOTP support, Class of Service (CoS), DHCP snooping, DHCP support, DiffServ support, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Fanless, Full duplex capability, IPv6 support, MAC Address Notification, Multicast VLAN Registration (MVR), Port Aggregation Protocol (PAgP) support, QoS, RSPAN, Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Syslog, TFTP, VLAN, WTD
Form Factor Desktop, DIN rail mountable, Rack-mountable, Wall-mountable
Jumbo Frame Support 9198 bytes
Manageable Yes
PoE Budget 240 watt
Ports 8
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol RIP-1, RIP-2, Static IP routing
Status Indicators Link/activity, PoE, Port transmission speed, Status, System
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x mini-USB Type B management, 1 x USB Type A, 2 x 1/2.5/5/10GBase-T (PoE+) SFP+, 2 x 1000Base-T RJ-45 uplink, 8 x 1000Base-T RJ-45 PoE+
Port Quantity 8
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) Combo 10 Gigabit SFP+
Power
Frequency 50/60 hertz
Power Consumption Operational 35.2 watt
Power Provided 240 watt
80 PLUS Certification 80 PLUS Silver
Software
Software Type Cisco IOS IP Base
Technical Information
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
MTBF 528,480 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method Kerberos, RADIUS, Secure Shell (SSH), TACACS+
Capacity Virtual interfaces (VLANs): 1023
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance (64-byte packet size): 68.4 Mpps, Forwarding performance: 46 Gbps
Ports (2nd) Quantity 2
Rack Mounting Kit Optional
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 6.04 lbs
Width 10.6 inch
Depth 10.4 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards ANATEL, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22, CISPR 24, EN 60950-1, EN55022, EN55024, GB 4943, GOST, IEC 60825, IEC 60950-1, KCC Class A, KN22, KN24, RoHS, UL 60950-1, VCCI V-3/2007.04 Class A
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
