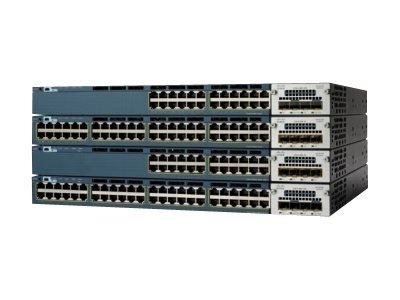

Cisco Catalyst 3560X-24U-L – switch – 24 ports – managed – rack-mountable

Add to Wishlist
Cisco Catalyst 3560X-24U-L – Switch – managed – 24 x 10/100/1000 (UPOE) – desktop, rack-mountable – UPOE (800 W) – refurbished

د.إ14,099.00

Add to Wishlist

The Cisco Catalyst 3560-X series switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

SKU: WS-C3560X-24U-L-RF Category: Tag:
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 800 W
Performance Switching fabric bandwidth: 160 Gbps
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, layer 2 switching, dynamic IP address assignment, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, universal power over Ethernet (UPOE)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae
RAM 256 MB
Flash Memory 64 MB
Status Indicators Port status, port transmission speed, port duplex mode, power, system, link/activity
Expansion / Connectivity 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 UPOE <br> 1 x USB Type A <br> 1 x console – mini-USB Type B management <br> 1 x RS-232 – RJ-45 management <br> 1 x 10Base-T/100Base-TX – RJ-45 management
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Features Redundant Power System (RPS) connector
Miscellaneous Rack Mounting Kit: Optional
MTBF 247,580 hours
Compliant Standards TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
Pricing Type Refurbished
Software Included Cisco IOS LAN Base
Dimensions & Weight Width: 17.5 in <br> Depth: 19.5 in <br> Height: 1.8 in <br> Weight: 15.87 lbs
