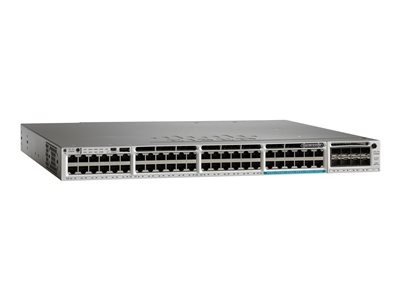

Cisco Catalyst 3850-12X48U-E – switch – 48 ports – managed – rack-mountable WS-C3850-12X48U-E

Availability:

10 in stock
Add to Wishlist

AED114,699.00

10 in stock

Add to Wishlist

Cisco WS-C3850-12X48U-E Catalyst C3850-12X48U-L Switch

Overview

The Cisco Catalyst 3850 Series is enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

  • Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput
  • Cisco StackPower technology provides power stacking among stack members for power redundancy
  • Dual redundant, modular power supplies and three modular fans providing redundancy
  • Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 rack unit (RU) form factor
  • Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
  • Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF), and enhanced security features
  • Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
SKU: WS-C3850-12X48U-E Category: Tags: , , ,

Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 630 W
Performance Switching capacity: 176 Gbps Stacking bandwidth: 480 Gbps Forwarding performance (64-byte packet size): 460 Mpps
Capacity IPv4 routes: 24000 NetFlow entries: 48000 Switched virtual interfaces (SVIs): 1000 Virtual interfaces (VLANs): 4000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, power, system, active, status, PoE
Expansion / Connectivity
Interfaces 36 x 1000Base-T RJ-45 UPOE – 60 W 12 x 1/2.5/5/10GBase-T RJ-45 UPOE – 60 W 1 x USB Type A 1 x management (mini-USB) Type B 1 x console RJ-45 management 1 x management (Gigabit LAN) RJ-45 2 x network stack device
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
MTBF 202,030 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386
Software / System Requirements
Software Included Cisco IOS IP Services
Dimensions & Weight
Width 17.5 in
Depth 19.2 in
Height 1.8 in
Weight 17.64 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
General
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Virtual interfaces (VLANs): 4000
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Features DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Flash Memory 2 GB
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32000 entries
Performance Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding performance (64-byte packet size): 460 Mpps
PoE Budget 630 W
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
RAM 4 GB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD
Status Indicators Port transmission speed, port duplex mode, power, system, active, status, PoE
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 19.2 in
Height 1.8 in
Weight 17.64 lbs
Width 17.5 in
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 23 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 36 x 1000Base-T RJ-45 UPOE – 60 W ¦ 12 x 1/2.5/5/10GBase-T RJ-45 UPOE – 60 W ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 300386, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A
MTBF 202,030 hours
Power
Installed Qty 1 (installed) / 2 (max)
Power Device Internal power supply
Power Provided 1100 Watt
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50 – 60 Hz)
Software / System Requirements
Software Included Cisco IOS IP Services
