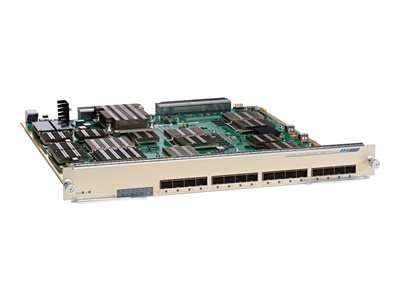

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4 – expansion module

Add to Wishlist

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4 – Expansion module – 10 GigE – 10GBase-X – for Catalyst 6503, 6504, 6506, 6509, 6807

152,899.00 د.إ

Add to Wishlist

The C6800 family 16-port 10-Gigabit Ethernet fiber module is suitable for deployment in all campus aggregation and core networks.

SKU: C6800-16P10G 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 40 Gbps
Performance Switching fabric bandwidth: 80 Gbps
Forwarding performance: 60 Mpps
Capacity Multicast entries (IPv4): 64000
Multicast entries (IPv6): 64000
Hardware forwarding entries: 256000
NetFlow entries: 1000000
ACL entries: 64000
MAC Address Table Size 128K entries
Remote Management Protocol RMON, SMON
Status Indicators Status, link/activity
Features MPLS support, IGMP snooping, LLQ, CBWFQ, WRED, ACL support, QoS, Jumbo Frames support, MLD snooping, DWRR, SRR, NetFlow, VPLS
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq
Processor / Memory RAM: 2 GB
Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x expansion slot
Miscellaneous
Encryption Algorithm 128-bit AES
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, IEC 60825-1, EN 60825-1, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETS 300 386, AS/NZS CISPR 22, ETSI 300 019, 21 CFR 1040.10, EN 55022 Class A
Power Power Consumption Operational: 303.68 Watt
Software / System Requirements OS Required: Cisco IOS 15.2(1)SY
Dimensions & Weight
Width 15.4 in
Depth 16.4 in
Height 1.7 in
Weight 11.02 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)

Designed For
Cisco Catalyst 6503-E
6503-E chassis with Supervisor Engine 32
6503-E Firewall Security System Bundle
6503-E WSLM Bundle
6504-E
6504-E Application Control Engine (ACE) 20 Bundle
6504-E chassis with Supervisor Engine 32
6504-E with Supervisor Engine 720-3B
6504-E with WiSM Bundle
6506-E
6506-E chassis with Supervisor Engine 32
6506-E Data Center Services Bundle
6506-E Firewall Security System Bundle
6506-E IDSM-2 Bundle with 2-Gbps Performance
6506-E IPSec VPN SPA Security System Bundle
6506-E NAM-3 System
6506-E VPN System
6506-E WLSM Bundle
6509-E
6509-E 10Gig Firewall Security System Bundle
6509-E Application Control Engine (ACE) 20 Bundle
6509-E Application Control Engine (ACE) 30 8G Bundle
6509-E chassis with Supervisor Engine 32
6509-E Data Center Services Bundle
6509-E Firewall Security System Bundle
6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL
6509-E IPSec VPN SPA Security System
6509-E NAM-3 System
6509-E with Supervisor Engine 720
6509-E with WiSM Bundle
6509-V-E
6807-XL
