The C6800 family 16-port 10-Gigabit Ethernet fiber module is suitable for deployment in all campus aggregation and core networks.
Network Adapters

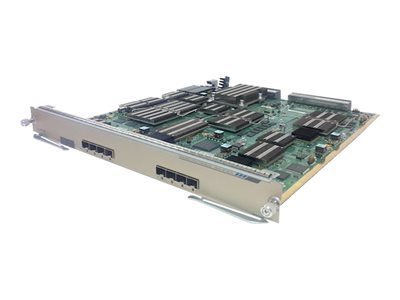

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4 – expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 8
Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4 – Expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 8 – for Catalyst 6880-X, 6880-X-Chassis (Standard Tables), 6880-X-Chassis (XL Tables)
175,899.00 د.إ
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | 10 Gigabit SFP+ / SFP (mini-GBIC) x 8 |
Connectivity Technology | Wired |
Cabling Type | Ethernet 10GBase-X |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 40 Gbps |
Performance | Switching fabric bandwidth: 80 Gbps ¦ Forwarding performance: 60 Mpps |
Capacity | Multicast entries (IPv4): 64000 ¦ Multicast entries (IPv6): 64000 ¦ Hardware forwarding entries: 256000 ¦ NetFlow entries: 1000000 ¦ ACL entries: 512000 ¦ Jumbo frame size: 9216 |
MAC Address Table Size | 128K entries |
Remote Management Protocol | RMON, SMON |
Status Indicators | Status, link/activity |
Features | MPLS support, IGMP snooping, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR), NetFlow, Virtual Private LAN Service (VPLS) |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq |
Processor / Memory | RAM: 2 GB |
Expansion / Connectivity | Interfaces: 8 – SFP/SFP+ |
Miscellaneous | Encryption Algorithm: 128-bit AES |
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, IEC 60825-1, EN 60825-1, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETS 300 386, AS/NZS CISPR 22, ETSI 300 019, 21 CFR 1040.10, EN 55022 Class A |
Power | Power Consumption Operational: 303.68 Watt |
Software / System Requirements | OS Required: Cisco IOS 15.2(1)SY |
Dimensions & Weight | Width: 15.4 in |
Depth: 16.4 in |
Height: 1.7 in |
Weight: 11.02 lbs |
Environmental Parameters | Min Operating Temperature: 32 °F |
Max Operating Temperature: 104 °F |
Humidity Range Operating: 10 – 90% (non-condensing) |
Compatibility Information | Designed For: Cisco Catalyst 6880-X, 6880-X-Chassis (Standard Tables), 6880-X-Chassis (XL Tables) |
