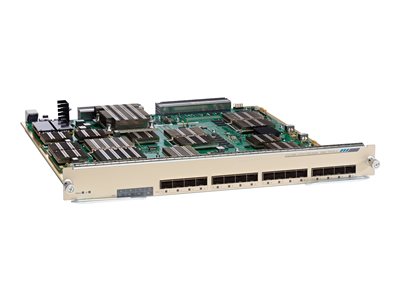

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4XL – expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 16


Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4XL – Expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 16 – for Catalyst 6807-XL, 6880-X-Chassis (XL Tables)

214,099.00 د.إ

Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 10 Gigabit SFP+ / SFP (mini-GBIC) x 16
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 40 Gbps
Performance
Switching fabric bandwidth 80 Gbps
Forwarding performance 60 Mpps
Capacity
Multicast entries (IPv4) 64000
Multicast entries (IPv6) 64000
Hardware forwarding entries 1000000
NetFlow entries 2000000
ACL entries 256000
Jumbo frame size 9216
MAC Address Table Size 128K entries
Remote Management Protocol RMON, SMON
Status Indicators Status, link/activity
Features MPLS support, IGMP snooping, LLQ, CBWFQ, WRED, ACL support, QoS, Jumbo Frames support, MLD snooping, DWRR, SRR, NetFlow, VPLS
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq
Processor / Memory
RAM 2 GB
Expansion / Connectivity
Interfaces 16 – SFP/SFP+
Miscellaneous
Encryption Algorithm 128-bit AES
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, IEC 60825-1, EN 60825-1, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETS 300 386, AS/NZS CISPR 22, ETSI 300 019, 21 CFR 1040.10, EN 55022 Class A
Power
Power Consumption Operational 303.68 Watt
Software / System Requirements
OS Required Cisco IOS 15.2(1)SY
Dimensions & Weight
Width 15.4 in
Depth 16.4 in
Height 1.7 in
Weight 11.02 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Compatibility Information
Designed For Cisco Catalyst 6807-XL, 6880-X-Chassis (XL Tables)
