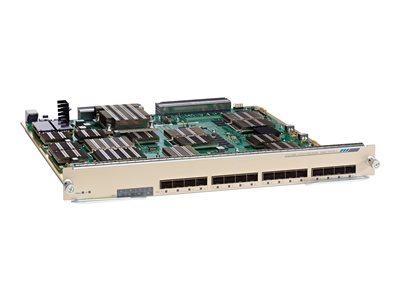

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4XL – expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 8 – TAA Compliant

Add to Wishlist

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4XL – Expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 8 – TAA Compliant – for Catalyst 6807-XL, 6816-X, 6824-X, 6832-X, 6840-X, 6880-X, 6880-X-Chassis

248,799.00 د.إ

Add to Wishlist
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 10 Gigabit SFP+ / SFP (mini-GBIC) x 8
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 40 Gbps
Performance Switching fabric bandwidth: 80 Gbps
Forwarding performance: 60 Mpps
Capacity Multicast entries (IPv4): 64000
Multicast entries (IPv6): 512000
Hardware forwarding entries: 1024000
NetFlow entries: 1024000
ACL entries: 256000
Jumbo frame size: 9216
MAC Address Table Size 128K entries
Remote Management Protocol RMON, SMON
Status Indicators Status, link/activity
Features MPLS support, IGMP snooping, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR), NetFlow, Virtual Private LAN Service (VPLS)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, IEC 60825-1, EN 60825-1, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETS 300 386, AS/NZS CISPR 22, ETSI 300 019, 21 CFR 1040.10, EN 55022 Class A
TAA Compliant Yes
Power Power Consumption Operational: 303.68 Watt
Software / System Requirements OS Required: Cisco IOS 15.2(1)SY
Dimensions & Weight Width: 15.4 in
Depth: 16.4 in
Height: 1.7 in
Weight: 11.02 lbs
Environmental Parameters Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 – 90% (non-condensing)
Compatibility Information Designed For: Cisco Catalyst 6807-XL, 6816-X Chassis (Standard Tables), 6824-X Chassis, 6824-X Chassis (Standard Tables), 6832-X Chassis (Standard Tables), 6840-X Chassis, 6840-X Chassis (Standard Tables), 6880-X, 6880-X-Chassis (Standard Tables), 6880-X-Chassis (XL Tables)
