The 6800 Series 16-port 10 Gigabit Ethernet Fiber module provides up to 176 10 Gigabit Ethernet Fiber ports in a single Cisco Catalyst 6513-E Switch chassis, 352 10 Gigabit Ethernet Fiber ports in a Cisco Catalyst 6500 Virtual Switching System. The 6800 series 16-port 10 Gigabit Ethernet Copper module is suitable for Data center access and switch-to-switch connectivity. The primary use case for 10GBase-T is high-speed server connectivity.
Network Adapters

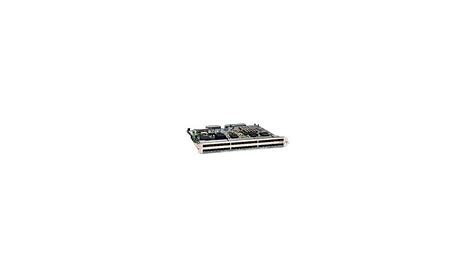

Cisco Catalyst 6800 Series Gigabit Ethernet Copper Module with DFC4 – expansion module – 1000Base-T x 48
Cisco Catalyst 6800 Series Gigabit Ethernet Copper Module with DFC4 – Expansion module – 1000Base-T x 48 – refurbished – for Catalyst 6807-XL, 6880-X-Chassis (XL Tables)
72,399.00 د.إ
General | |
---|---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking | |
Ports | 1000Base-T x 48 |
Connectivity Technology | Wired |
Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Data Transfer Rate | 1 Gbps |
Performance | Forwarding performance: 60 Mpps |
Capacity | Maximum frame size: 9216 |
Remote Management Protocol | RMON, SMON |
Status Indicators | Status, link/activity |
Features | Full duplex mode, STP support, QoS, Jumbo Frames support, DWRR, 1.5MB packet buffer |
Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s |
Processor / Memory | RAM: 1 GB |
Expansion / Connectivity | |
Interfaces | 48 x 1000Base-T – RJ-45 |
Miscellaneous | Compliant Standards: NEBS, GR-1089-CORE, GR-63-CORE, ETS300019-2-1 Class T1.2, ETS300019-2-2 Class T2.3, ETS 300 019-2-3 |
Pricing Type | Refurbished |
Dimensions & Weight | |
Width | 14 in |
Depth | 16 in |
Height | 1.2 in |
Weight | 8.25 lbs |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 – 90% (non-condensing) |
Compatibility Information | Designed For: Cisco Catalyst 6807-XL, 6880-X-Chassis (XL Tables) |
