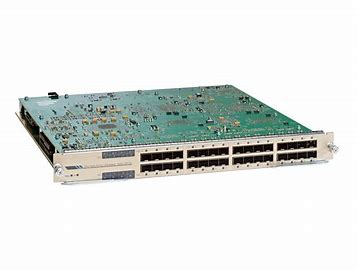

Cisco Catalyst 6800 Series Gigabit Ethernet Fiber Module with DFC4 – expansion module – SFP (mini-GBIC) x 48

Add to Wishlist

Cisco Catalyst 6800 Series Gigabit Ethernet Fiber Module with DFC4 – Expansion module – SFP (mini-GBIC) x 48 – refurbished – for Catalyst 6800ia, 6807-XL, 6880-X

AED145,599.00

Add to Wishlist

The Gigabit Ethernet modules serve campus and data center networking requirements in enterprise, commercial, and service provider environments. They include a 48-port Gigabit Ethernet Copper Module and 48-port Gigabit Ethernet Fiber Module.

The Gigabit Ethernet Copper Module supports RJ-45 connectors. It supports operational distances of up to 100 meters over Category 5, 5E, and 6 Unshielded Twisted Pair (UTP) copper cabling. The Gigabit Fiber Module supports pluggable optics and supports operational distances of up to 80 km over single-mode and multimode fiber.

SKU: C6800-48P-SFP-RF 1 Category: Tag:
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports SFP (mini-GBIC) x 48
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-X
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 40 Gbps
Performance Forwarding performance: 60 Mpps
Capacity Maximum frame size: 9216
Remote Management Protocol RMON, SMON
Status Indicators Status
Features Full duplex mode, STP support, QoS, DOM support, Jumbo Frames support, DWRR, 1.5MB packet buffer
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
Processor / Memory
RAM 1 GB
Expansion / Connectivity
Interfaces 48 – SFP (mini-GBIC)
Miscellaneous
Compliant Standards NEBS, GR-1089-CORE, GR-63-CORE, ETS300019-2-1 Class T1.2, ETS300019-2-2 Class T2.3, ETS 300 019-2-3
Pricing Type Refurbished
Power
Power Consumption Operational 339.44 Watt
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.2 in
Weight 8.71 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Compatibility Information
Designed For Cisco Catalyst 6800ia, 6807-XL, 6880-X
