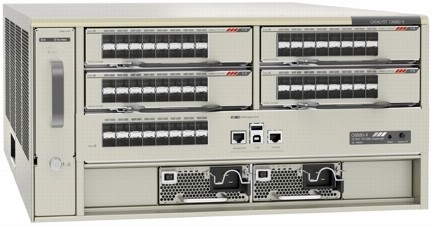

Cisco Catalyst 6800 switch chassis, 5RU, Super 2TXL Engine, no PS, no Fan Tray
AED230,099.00
Cisco Catalyst Switch C6880-X Chassis with fixed configuration. The Cisco Catalyst 6880-X Series offers primary features and benefits, including:
āĀ Ā Platform Scalability: The platform supports up to 220Gbps slot capacity per port-card. It supports up to 2Tbps of switching capacity, which doubles up to 4Tbps with VSS technology.
āĀ Ā Security: Support for Cisco TrustSec (CTS), to provide IEEE 802.1AE MACsec encryption and role-based ACL, CoPP to prevent DoS attacks and Cisco ISE to safeguard and manage end-to-end security for the enterprise.
āĀ Ā Virtualization: Comprehensive suite of Virtualization features including L2/L3 VPN, full MPLS, EVN, VRF aware applications for NAT Netflow, GRE for v4/v6, L2 extensions with VPLS etc. to segment different user groups and serve unique security/QoS policy requirements of each of these diverse user groups.
āĀ Ā Application Visibility and Control (AVC): Supports enhanced application monitoring such as Flexible and Sampled NetFlow for intelligent and scalable application monitoring.
āĀ Ā Smart Operations: The Cisco Catalyst 6880-X supports Catalyst Instant Access*, which allows an Instant Access Client to act as a remote line card of the Cisco Catalyst 6880-X, as well as Smart Install Director, which provides zero-touch deployment of access switches.
āĀ Ā High Availability: Two Cisco Catalyst 6880-X Series Switches can be combined into a VSS. In addition to high-availability VSS, provides ease of operation by providing a single point of management, eliminating the need for First Hop Routing Protocol (FHRP) and removing the reliance on Spanning Tree Protocol (STP) for link failure restoration.
* Support of Catalyst Instant Access is available on 15.1(2) SY2 and later releases.
C6880-X Specification |
|
|
QoS Features and Scalability |
|
| Feature | C6880-X |
| Layer-3 classification and marking access control entries (ACEs) | 256K shared for QoS/Security |
| Aggregate traffic rate-limiting policers | 16,348 |
| Flow-based rate-limiting method; number of rates | Per source address, destination address, or full flow; 64 rates |
| Layer 2 rate limiters | 20 ingress/6 egress |
| MAC ACLs featuring per-port/per VLAN granularity | Yes |
| Distributed policers | Yes |
| Shared uFlow policers | Yes |
| Egress uFlow policers | Yes |
| Packet or byte policers | Yes |
| Per port per VLAN | Yes |
| COS and DSCP based Queue mapping | Yes |
| Deficit Weighted Round Robin Scheduler (DWRR) and Weighted Random Early Detection Scheduler (WRED) | Yes |
| Receive and Transmit Queues | Default: 1p7q4t
Configurable: 2p6q4t |
|
Security Features and Scalability |
|
| Port security | Yes |
| IEEE 802.1x and 802.1x extensions | Yes |
| VLAN and router ACLs and port ACLs | Yes |
| 1:1 mask ratio to ACE values | Yes |
| Security ACL entries | 256K shared for QoS/Security |
| CPU rate limiters (DoS protection) | 57 |
| uRPF check (IPv4/IPv6) | Up to 16 |
| Number of interfaces with unique ACL | 16k |
| RPF interfaces | 16 |
| Private VLANs | Yes |
| MAC ACLs on IP | Yes |
| Layer 2 and Layer 3 Cisco TrustSec
(Security Group Tagging & Security Group Access Control List) |
Yes |
| IEEE 802.1ae (MACsec) Layer 2 encryption in hardware | Yes |
| CPU HW rate limiters by PPS or BPS | Yes |
| CoPP for multicast | L2 and L3 support |
| CoPP for exceptions (MTU, TTL) | Yes |
| CoPP exceptions NetFlow support | Yes |
| ACL labels | 16K |
| Port ACL | 8K |
| ACL dry run | Yes |
| Hitless ACL changes | Yes |
|
MPLS and Virtualization Features |
|
| VSS* | Yes |
| Label imposition/disposition (MPLS-PE), swapping (MPLSāP) | Yes |
| Label Distribution Protocol (LDP) | Yes |
| MPLS VPN | Yes |
| VRF Lite | Yes |
| EVN | Yes |
| QoS mechanisms using experimental (EXP) bits | Yes |
| MPLS-RSVP-TE | Yes |
| MPLS differentiated services (diffserv)-aware traffic engineering (MPLS-DS-TE) | Yes |
| MPLS traceroute | Yes |
| EoMPLS | Yes |
| EoMPLS tunnels | 16k |
| IPv4 and IPv6 in IPv6 tunneling | Yes |
| IPv6 in IPv4 tunnelling (Intra-Site Automatic Tunnel Addressing Protocol [ISATAP], 6to4, GRE | Yes |
| QoS support for uniform, short pipe and pipe mode tunnel | Yes |
| Native VPLS in HW | Yes |
| Native L2 over multipoint GRE | Yes |
| VRF-aware operational contexts | Yes |
| VPN NetFlow support | Yes |
| VPN aware NAT | Yes |
| VRF-lite scalability | VLAN reuse per subinterface |
| Per VPN interface statistics | Yes |
|
Netflow and Multicast Features |
|
| Netflow support in hardware | Yes |
| Flexible Netflow | Yes |
| Sampled Netflow | Yes |
| Ingress/Egress Netflow | Yes |
| Ingress and Egress replication in hardware | Yes |
| IGMPv3 snooping in hardware | Yes |
| IPv6 MLDv2 snooping in hardware | Yes |
| PIM registers in hardware | Yes |
| Label Switched Multicast (LSM) | Yes |
|
Base System Scalability |
|
| MAC entries | 128K |
| Routes | 2048K (IPv4)
1024K (IPv6) |
| ACL entries | 256K shared for QoS/Security |
| NetFlow entries | 1024K (per module slot)
Up to 5M per system |
| Multicast routes | 128K (IPv4)
128K (IPv6) |
| IPv4 routing | In hardware
Up to 300 Mpps** |
| IPv6 routing | In hardware
Up to 150 Mpps** |
| L2 bridging | In hardware
Up to 300 Mpps** |
| Jumbo frame support | Up to 9216 bytes
(For bridged and routed pkts.) |
| VLAN | 4K |
| Bridge domains | 16K |
| MPLS | In hardware (up to 8192 VRFs at 300 Mpps**) |
| Logical interfaces | 128K |
| EtherChannel hash | 8 bits |
| VPLS | In hardware (up to 150 Mpps**) |
| GRE | In hardware (up to 150 Mpps**) |
| NAT | Hardware assisted |
| Onboard memory | 4GB |
| Ingress buffers | 1.25MB per 10G port in 2:1 mode
2.5MB per 10G port in 1:1 mode (10MB per Port ASIC) |
| Egress buffers | 24MB per 10G port in 2:1 mode
48MB per 10G port in 1:1 mode (192MB per MUX FPGA) |
|
Software Packaging |
|
| Software License | āĀ Ā IP Services
āĀ Ā Advanced Enterprise Services |
| Software compatibility | 15.1(2)SY1 and later releases* |
