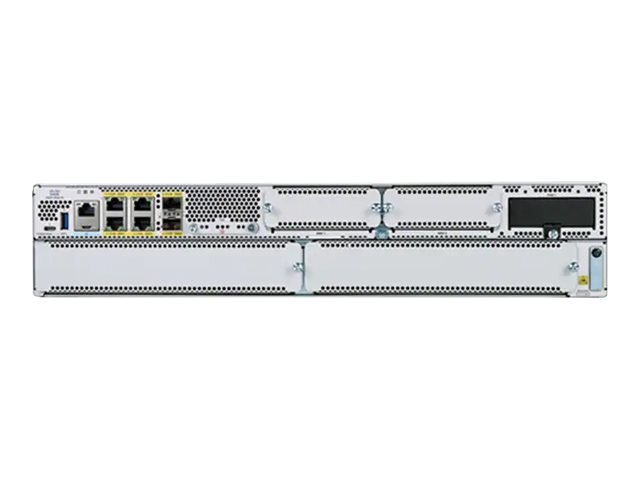

Cisco Catalyst 8300-2N2S-4T2X – router – rack-mountable
Tech overview
64,599.00 د.إ
Cisco Catalyst 8300 series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. Catalyst 8300 series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.
The Catalyst 8300 series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | |
| VPN Throughput (IMIX IPSec) | 5 Gbps |
| VPN Throughput (1400 B IPSec) | 18 Gbps |
| IPv4 Forwarding Throughput | 19.7 Gbps (1400-byte packet size) |
| Capacity | |
| Maximum Overlay Tunnels | 6000 |
| ACL | 4000 |
| Access Control Entries (ACEs) | 72000 (IPv4) |
| IPv4 Routes | 1600000 |
| IPv6 Routes | 1500000 |
| Queues | 16000 |
| NAT Sessions | 1200000 |
| Firewall Sessions | 512000 |
| VRF Entries | 4000 |
| Network/Transport Protocol | |
| RSVP, NTP, IPSec, PPPoE, DHCP | DNS, L2TPv3, RTCP |
| Routing Protocol | |
| OSPF, RIP, IS-IS, RIP-2, BGP | EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, PBR, MPLS, BFD |
| Remote Management Protocol | SNMP, SCP, OMP |
| Encryption Algorithm | |
| DES, Triple DES, MD5, IKE, TLS | SHA-1, PKI, 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC |
| Authentication Method | |
| Secure Shell (SSH), RADIUS | |
| Features | |
| NAT Support, PAT Support, Syslog Support, URL Filtering, CBWFQ, WRED, ACL Support, QoS, DHCP Server, BFD, DHCP Client, FEC, CoS, CAC, FNF, AVC, SSM, AAA, HQoS, ERSPAN, EEM, PIM, EVC, Cisco IPSLA, NBAR, DTLS, PPP, HDLC, MLPPP, MLFR, AAR, IVR, SAF | |
| Compliant Standards | |
| IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, EN 55035, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1 | |
| Processor | Intel |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Hard Drive | 16 GB |
| IP Telephony | |
| VoIP Protocols | SRTP |
| Expansion/Connectivity | |
| Interfaces | WAN/LAN: 2 x 10Gb Ethernet, WAN/LAN: 4 x Ethernet 1000, USB: 1 x |
| Expansion Slots | 2 (total) / 2 (free) x service module (SM), 2 (total) / 2 (free) x NIM |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Power | Internal Power Supply |
| Miscellaneous | MTBF: 710,300 hours |
| Software/System Requirements | |
| OS Required | Cisco IOS XE 17.3.2 |
| Dimensions & Weight | |
| Width | 18.5 in |
| Depth | 17.2 in |
| Height | 3.5 in |
| Weight | 39.9 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: C8300-DNA, UCS-E1100D-M6 |
