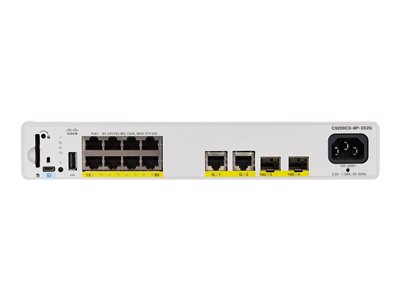

Cisco Catalyst 9200CX – Network Advantage – switch – compact – 8 ports – managed – rack-mountable

Add to Wishlist
Cisco Catalyst 9200CX – Network Advantage – switch – compact – L3 – managed – 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) – rack-mountable – PoE+ (240 W)

AED9,199.00

Add to Wishlist
Device Type Switch – 8 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 240 W
Performance Switching capacity: 60 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Packet buffer size: 6 MB
Capacity Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG
Encryption Algorithm 128-bit AES
Features ACL support, QoS, Rapid PVST+, fanless, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, ZTP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, Cisco UADP 2.0, trustworthy systems
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
RAM 4 GB
Flash Memory 8 GB
Built-in Devices RFID tag
Status Indicators Power
Expansion / Connectivity Interfaces: 8 x 1000Base-T RJ-45 PoE+ – 30 W, 2 x 1000Base-T RJ-45, 2 x 10GBase-X SFP+ uplink, 1 x USB 2.0, 1 x console (micro-USB)
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Power Power Device: Internal power supply ¦ Power Provided: 310 Watt ¦ Voltage Required: AC 100-240 V (50/60 Hz)
Miscellaneous MTBF: 569,530 hours ¦ Compliant Standards: Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements Software Included: Cisco IOS Universal 17.8
Dimensions & Weight Width: 10.6 in ¦ Depth: 9.6 in ¦ Height: 1.7 in ¦ Weight: 6.59 lbs
