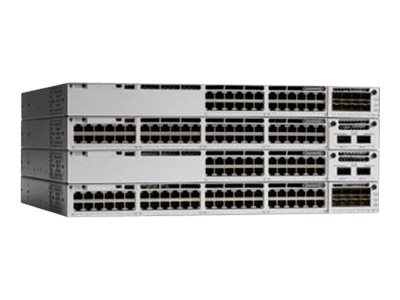

Cisco Catalyst 9300 – Network Essentials – switch – 24 ports – managed – rack-mountable

Add to Wishlist
Cisco Catalyst 9300 – Network Essentials – switch – L3 – managed – 24 x 10/100/1000 (PoE+) – rack-mountable – PoE+ (445 W) – refurbished

د.إ16,899.00

Add to Wishlist

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

SKU: C9300-24P-E-RF Category: Tag:
Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE Budget 445 W
Performance Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm 128-bit AES
Features Trunking, full duplex mode, WRED, STP support, ACL support, QoS, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, CoPP, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 8 GB
Flash Memory 16 GB
Status Indicators Status
Expansion / Connectivity Interfaces: 48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power Power Device: Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Provided 715 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous MTBF: 299,000 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Pricing Type Refurbished
Software / System Requirements Cisco IOS Universal
Dimensions & Weight Width: 17.5 in, Depth: 17.5 in, Height: 1.7 in, Weight: 16.31 lbs
