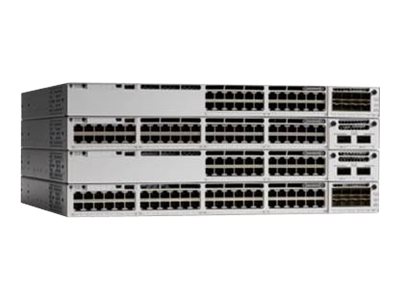

Cisco Catalyst 9300 – Network Essentials – switch – 48 ports – managed – rack-mountable C9300-48U-E

Name: Cisco Catalyst 9300 - Network Essentials - switch - 48 ports - managed - rack-mountable C9300-48U-E
SKU: C9300-48U-E
Price: 38599.00 AED
Availability: InStock

Availability:

10 in stock

Add to Wishlist

AED38,599.00

10 in stock

Add to Wishlist

Cisco Systems Catalyst 9300 48 Port Upoe Network Essentials

Overview

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Cloud ready

Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.

Optimized for mobility

Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Number of Ports:48

SKU: C9300-48U-E Category: Network Switches & Routers Tags: 9300, Cisco Catalyst, Essentials, Network

Specifications

General

Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	822 W
Performance	Switching capacity: 128 Gbps Stacking bandwidth: 480 Gbps Forwarding rate: 190.48 Mpps
Capacity	IPv4 routing table entries: 32000 IPv6 routing table entries: 16000 Flexible NetFlow entries: 64000 VLAN IDs: 4000 Switched virtual interfaces (SVIs): 2000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status

Expansion / Connectivity

Interfaces	48 x 1000Base-T RJ-45 UPOE 1 x USB 2.0
Expansion Slots	1 (total) / 1 (free) x expansion slot

Power

Power Device	Internal power supply – hot-plug
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50 – 60 Hz)

Miscellaneous

MTBF	227,410 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Software / System Requirements

OS Required

Cisco IOS Universal

Dimensions & Weight

Width	17.5 in
Depth	17.5 in
Height	1.7 in
Weight	17.02 lbs

Manufacturer Warranty

Service & Support

Limited warranty – replacement – lifetime – response time: next business day Technical support – consulting – 90 days

Environmental Parameters

Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 – 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	5 – 90% (non-condensing)

General
Capacity	IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	128-bit AES
Features	Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Flash Memory	16 GB
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32000 entries
Performance	Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps
PoE Budget	822 W
Ports	48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
RAM	8 GB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Status Indicators	Status
Subtype	Gigabit Ethernet

Dimensions & Weight
Depth	17.5 in
Height	1.7 in
Weight	17.02 lbs
Width	17.5 in

Environmental Parameters
Humidity Range Operating	5 – 90% (non-condensing)
Humidity Range Storage	5 – 90% (non-condensing)
Max Operating Temperature	113 °F
Max Storage Temperature	158 °F
Min Operating Temperature	23 °F
Min Storage Temperature	-40 °F

Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	48 x 1000Base-T RJ-45 UPOE ¦ 1 x USB 2.0

Manufacturer Warranty
Service & Support	Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days

Miscellaneous
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317, VCCI V-3/2009 Class A, EN 300386
MTBF	227,410 hours

Power
Installed Qty	1 (installed) / 2 (max)
Power Device	Internal power supply – hot-plug
Power Provided	1100 Watt
Power Redundancy	Optional
Voltage Required	AC 120/230 V (50 – 60 Hz)

Software / System Requirements
OS Required	Cisco IOS Universal
