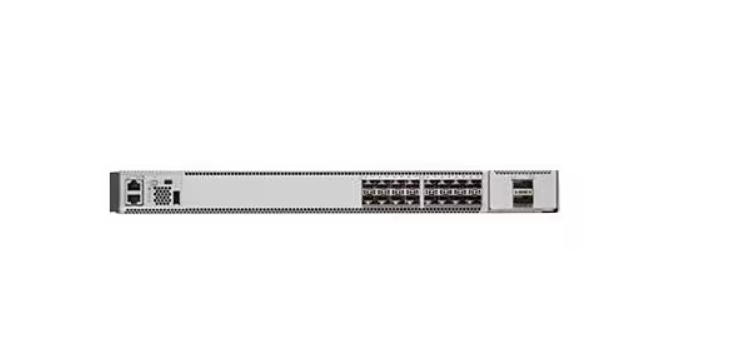

Cisco Catalyst 9500 – Network Advantage – switch – 16 ports – managed – rack-mountable


Quick tech specs

  • Network Advantage
  • L3
  • 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
  • switch
  • managed
  • rack-mountable

96,699.00 د.إ

Know your gear

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Category: Tag:
Category Specification
Overview
Brand Cisco
Product Line Cisco Catalyst
Model 9500
Edition Network Advantage
Manufacturer Cisco Systems
Processor
Clock Speed 2.4 GHZ
Processors Installed 1
Memory
Flash Memory Installed 16 GB
RAM Installed 16 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Features Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, DHCP support, Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, Integrated Wireshark, Layer 3 VPN (L3VPN) support, MACsec support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Switched Port Analyzer (SPAN), Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9198 bytes
MAC Address Table Size 64K entries
Manageable Yes
Ports 16
Product Type Switch
Remote Management NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 3, TFTP
Routing Protocol IGMP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable Stackable
Status Indicators Status
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+
Port Quantity 16
Port Type 10 Gigabit Ethernet
Ports Type (2nd) 10 Gigabit SFP+
Power
Features Front-to-rear airflow
Frequency 50 – 60 hertz
Hot-Plug Hot-plug
Power Provided 950 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Software
Software Type Cisco IOS Universal
Technical Information
Built-in Devices RFID tag
Encryption 256-bit AES
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 104 degree Fahrenheit
Max Storage Temperature 149 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -4 degree Fahrenheit
MTBF 315,790 Hours
Operating Humidity 5 – 90% (non-condensing)
Product Information
Capacity FNF entries: 512000, Host IPv4 routes: 80000, Host IPv6 routes: 40000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 16000, QoS ACL scale: 18000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding rate: up to 360 Mpps, Switching capacity (full duplex): up to 480 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 21.5 inch
Height (Rack Units) 1
Weight 23.59 lbs
Width 1.7 inch
Depth 17.5 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, UL 60950-1, VCCI Class A
