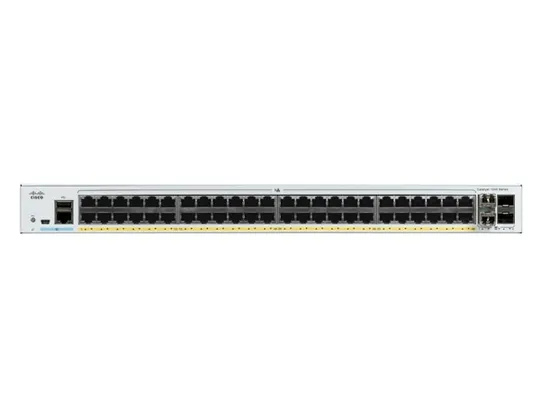

Cisco Catalyst C1000-48T-4G-L network switch Managed L2 Gigabit Ethernet (10/100/1000) Grey


48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks

AED5,399.00

Cisco Catalyst 1000 Series switches provide enterprise-grade network access sized for small businesses. With a wide range of Power over Ethernet (PoE) and port combinations, these easy-to-manage switches provide the performance a modern small office needs. Quiet and compact The compact, fanless design means Catalyst 1000 switches can hide in plain sight in open-plan spaces. Simplified management Catalyst 1000 switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy. Enhanced security With Catalyst 1000 switches’ larger-scale access-control tables and additional security features, you can segment traffic for greater security. Power over Ethernet With a range of PoE options featuring Perpetual PoE, Catalyst 1000 switches make installing IoT devices as easy as plugging in cables. The Catalyst 1000 Series switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring. Intuitive software for monitoring your network You can manage all your Cisco Catalyst IOS switches with Cisco Configuration Professional, a web-based application for monitoring and optimizing your devices and getting contextual support. Why upgrade to Catalyst 1000 switches Improved hardware – Increased PoE budget More advanced software options – sFlow and IPFIX – IPv6 First-Hop Security Expanded ACL support – Larger-scale access-control tables Accelerate your success with services from Cisco Customer Experience Confidently move to a secure, automated intent-based network with expert guidance, proven experience, best practices, and innovative tools.
Category: Tag:
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Traffic classification Y
ARP inspection Y
Configuring Location Settings (CLI) Y
MIB support Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Console port RJ-45/Mini-USB
USB 2.0 ports quantity 1
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Full duplex Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto-negotiation Y
VLAN support Y
Number of VLANs 256
MAC address table 16000 entries
Switching capacity 104 Gbit/s
Forwarding rate 77.38 Mpps
Static route Y
Number of static routes 16
Jumbo frames support Y
Jumbo frames 10240
DHCP features DHCP snooping
Access Control List (ACL) Y
IGMP snooping Y
IGMP entries 1024
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
Authentication Web-based authentication
Authentication type RADIUS
Multicast support Y
IPv4 multicast entries 1024
IPv6 multicast entries 1024
Management protocols SNMP
Product colour Grey
LED indicators Y
Built-in processor Y
Processor model ARM7
Processor frequency 800 MHz
Memory type DRAM
Internal memory 512 MB
Flash memory 256 MB
Mean time between failures (MTBF) 1452667 h
Harmonized System (HS) code 85176990
AC input voltage 110 – 220 V
AC input frequency 50/60 Hz
Power consumption (typical) 30.32 W
Power consumption (max) 33.6 W
Power over Ethernet (PoE) N
Operating temperature (T-T) -5 – 50 °C
Storage temperature (T-T) -25 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 4500 m
Width 444.5 mm
Depth 272.5 mm
Height 43.9 mm
Weight 3.95 kg
Product family Catalyst
