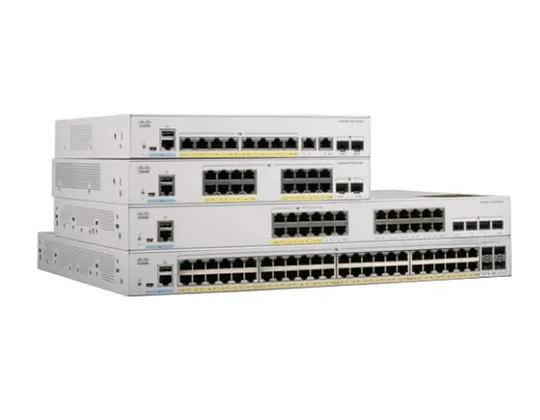

Cisco Catalyst C1000FE-24T-4G-L network switch Managed L2 Grey

Add to Wishlist
Catalyst 1000FE-24T-4G-L – Switch – managed – 24 x 10/100 + 2 x combo Gigabit SFP/RJ-45 (uplink) + 2 x SFP (mini-GBIC) (Uplink)

3,499.00 د.إ

Add to Wishlist

Highlights

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

SKU: C1000FE-24T-4G-L Category: Tag:
Feature Details
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Traffic classification Y
ARP inspection Y
Configuring Location Settings (CLI) Y
MIB support Y
Basic switching RJ-45 Ethernet ports quantity 24
Installed SFP modules quantity 2
Console port RJ-45/Mini-USB
USB 2.0 ports quantity 1
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support N
Full duplex Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Ethernet LAN data rates 10, 100, 1000 Mbit/s
VLAN support Y
Number of VLANs 4094
MAC address table 16000 entries
Switching capacity 56 Gbit/s
Forwarding rate 41.67 Mpps
Static route Y
Number of static routes 16
Jumbo frames support Y
Jumbo frames 10240
DHCP features DHCP snooping
Access Control List (ACL) Y
IGMP snooping Y
IGMP entries 1024
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
Authentication Web-based authentication
Authentication type RADIUS
Multicast support Y
IPv4 multicast entries 1024
IPv6 multicast entries 1024
Product colour Grey
LED indicators Y
Built-in processor Y
Processor model ARM7
Processor frequency 800 MHz
Memory type DRAM
Internal memory 512 MB
Flash memory 256 MB
Mean time between failures (MTBF) 2026793 h
AC input voltage 110 – 240 V
AC input frequency 50/60 Hz
Power over Ethernet (PoE) N
Operating temperature (T-T) -5 – 50 °C
Storage temperature (T-T) -25 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 4500 m
Width 444.5 mm
Depth 240 mm
Height 44 mm
Weight 2.63 kg
Harmonized System (HS) code 85176990
Product family Catalyst
