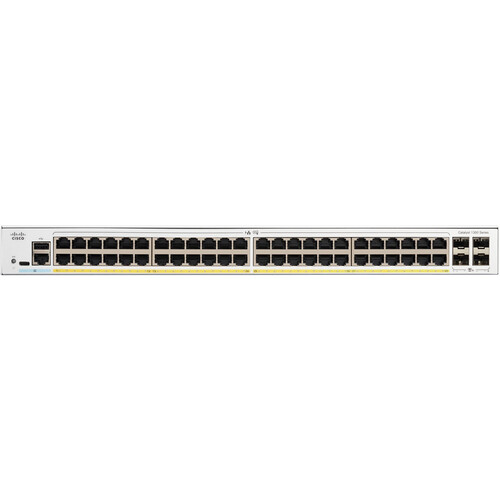

Cisco Catalyst C1300-48P-4X 48-Port Gigabit PoE+ Compliant Managed Network Switch (375W)

Add to Wishlist
Key Features
  • 48 x Gigabit Ethernet PoE+ Ports
  • 4 x 10G SFP Ports
  • 176 Gb/s Switching Capacity
  • 130.94 Mpps Forwarding Rate
  • Rack Mountable
  • Front Panel Hardware Stacking
  • 375W Power Budget
  • Fan Cooling
  • Layer 3 Features
  • IPV6 Support

10,299.00 د.إ

Add to Wishlist

Cisco C1300-48P-4X Overview

Designed for small- to medium-size businesses, the Cisco Catalyst C1300-48P-4X 48-Port Gigabit PoE+ Compliant Managed Network Switch allows you to operate security cameras, access points, VoIP phones, and other powered devices. It features 48 Gigabit-speed ports, each of which can provide up to 30W of power to compatible devices with a 375W budget. There are also four SFP+ slots available for 10 Gb/s fiber uplinks.

This rack-mountable managed switch delivers smooth performance with a 176 Gb/s switching capacity and 130.94 Mpps forwarding rate. It also includes advanced Layer 3 features and strong security. Front panel stacking support allows you to manage up to eight switches as though they were one virtual switch. A low-noise cooling fan helps to maintain optimal temperatures.

Cisco Business Dashboard
The Cisco Business Dashboard is designed to manage Cisco Business switches, routers, and wireless access points. It simplifies traditional challenges in deploying and managing business networks while automating the deployment, monitoring, and lifecycle management of the network. The 1300 Series switches support an embedded probe as well as direct management, eliminating the need to set up a separate hardware or virtual machine onsite. The device onboarding wizard simplifies the setup and onboarding of new devices to the network.
High Reliability and Resiliency
The Cisco Catalyst 1300 Series Switches support dual images, allowing you to perform software upgrades with minimal network downtime.
Strong Security
Support for advanced network security applications such as IEEE 802.1X and port security tightly limits access to specific segments of your network. Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks.
IPv6 support
As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Catalyst 1300 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.
Advanced Layer 3 Traffic Management
The Cisco Catalyst 1300 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.
Front Panel Stacking
This switch supports Front Panel Stacking for up to eight switches, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit with a single IP address.
Compact Design
The sleek and compact design for the Cisco Catalyst 1300 Series Switches provides additional deployment flexibility, including installation outside the wiring closet for sites such as retail stores, open-plan offices, and classrooms without disturbing the environment.
SKU: C1300-48P-4X Category: Tag:
Key Specs
Inputs/Outputs
48x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE
1x RJ45
1x USB-A
1x USB-C
Stackable
Yes
Switching Bandwidth
176 Gb/s
PoE Power Budget
375 W
Stackable
Yes
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
DHCP Server
Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
RADIUS
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9000 Bytes
Multicast Groups
2000
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Forwarding Rate
130.94 Mpps
Switching Bandwidth
176 Gb/s
Priority Queues
8
Packet Buffer
1.5 MB
Computer
Flash Memory
512 MB
CPU
Dual-Core: Up to 1.4 GHz
Memory
1 GB DDR4
Electrical
PoE per Port
30 W
PoE Power Budget
375 W
Power Draw
432.84 W (Max)
20.27 W (Idle)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
UL, CSA, CE, FCC
Operating Conditions
23 to 122°F / -5 to 50°C at 10 to 90% Humidity
Storage Conditions
-13 to 158°F / -25 to 70°C at 10 to 90% Humidity
Noise Level
37.3 dB
Cooling System
Fan
Mean Time Between Failures (MTBF)
1.47 Million Hours
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
Yes
Dimensions
17.5 x 13.8 x 1.7″ / 445 x 350 x 44 mm
Weight
14.04 lb / 6.37 kg
