The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud. Foundation for Software-Defined WAN CiscoĀ® CatalystĀ® 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOSĀ® XE SD-WAN Software deliver Ciscoās secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.
Network Switches & Routers

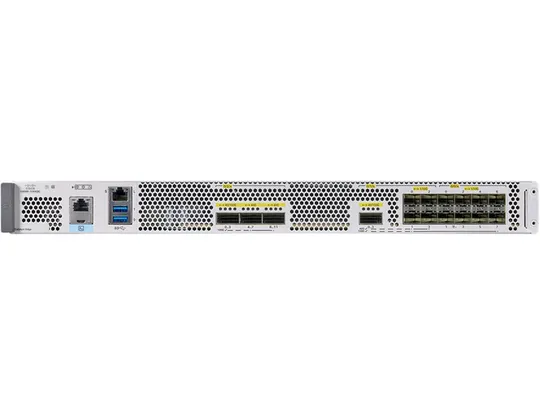

Cisco Catalyst C8500-12X4QC network switch Managed L2/L3 None 1U Grey
Catalyst 8500 Series 12-port SFP+ 1/10GE, 2-port QSFP+ 40/100GE, 2-port QSPF28 40GE
748,799.00 د.إ
DC input voltage | 40 – 72 V |
Power over Ethernet (PoE) | No |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 85% |
Storage relative humidity (H-H) | 5 – 95% |
Operating altitude | 152 – 3048 m |
Width | 444.5 mm |
Depth | 468.9 mm |
Height | 43.9 mm |
Weight | 9.41 kg |
Switch type | Managed |
Switch layer | L2/L3 |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Basic switching RJ-45 Ethernet ports type | None |
Installed SFP+ modules quantity | 12 |
Installed QSFP+ modules quantity | 2 |
Console port | RJ-45 |
QSFP28 ports quantity | 2 |
Networking standards | IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah |
10G support | Yes |
Port mirroring | Yes |
IP routing | Yes |
Throughput | 68000 Mpps |
Throughput | 197 Gbit/s |
DHCP features | DHCP client, DHCP relay, DHCP server |
Access Control List (ACL) | Yes |
Access Control List (ACL) rules | 4000 |
Access Control List (ACL) IPv4 entries | 380000 |
Security algorithms | 128-bit AES, 256-bit AES, IPSec, MD5, RSA, SHA-256, SHA-384, SHA-512 |
Multicast support | Yes |
Rack mounting | Yes |
Form factor | 1U |
Product colour | Grey |
LED indicators | Yes |
Electromagnetic compatibility | 47 CFR Part 15 Class A, ICES 003 Class A, AS/NZS CISPR 32 Class A, CISPR 22/CISPR 32 Class A, EN55022/EN55032 Class A, VCCI Class A, CNS-13438 Class A, KN32 Class A, IEC/EN 61000-3-2, IEC/EN 61000-3-3, EC/EN-61000-4-2, IEC/EN-61000-4-3, IEC/EN-61000-4-4, IEC/EN-61000-4-5, IEC/EN-61000-4-6, IEC/EN-6 |
Certification | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 |
Mean time between failures (MTBF) | 146700 h |
AC input voltage | 85 – 264 V |
Product family | Catalyst |
