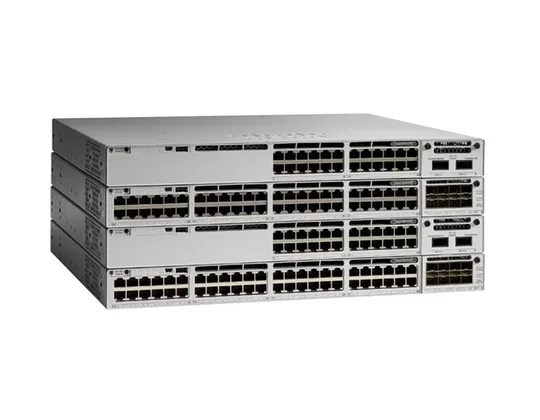

Built for security, IoT, mobility, and cloud The CiscoĀ® CatalystĀ® 9300 Series switches are Ciscoās lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industryās most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Ciscoās lead enterprise architecture. At up to 1TB, they are the industryās highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWiseĀ® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPowerĀ®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOEĀ®+ ports. The switches are based on the Cisco Unified Access⢠Data Plane 2.0 (UADP) architecture which not only protects your investment but also allows a larger scale and higher throughput. Catalyst 9300X models are based on a new ASIC, UADP 2.5sec, which adds Crypto support in hardware, including IPSEC. A modern operating system, Cisco IOSĀ® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
ethernet
Cisco Catalyst C9300X-12Y-A network switch Managed L3 2.5G Ethernet (100/1000/2500) Grey
12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage
AED88,799.00
Switch type | Managed |
Switch layer | L3 |
Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
SFP28 ports quantity | 12 |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
10G support | Yes |
MAC address table | 32000 entries |
Switching capacity | 1000 Gbit/s |
Forwarding rate | 744.04 Mpps |
Jumbo frames support | Yes |
Jumbo frames | 9198 |
Rack mounting | Yes |
Stackable | Yes |
Product colour | Grey |
LED indicators | Yes |
Mean time between failures (MTBF) | 265650 h |
Power source | AC |
Power supply included | Yes |
AC input voltage | 100 – 230 V |
AC input frequency | 50/60 Hz |
Power consumption (typical) | 715 W |
Operating temperature (T-T) | -5 – 45 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 5 – 90% |
Width | 445 mm |
Depth | 409 mm |
Height | 43.9 mm |
Harmonized System (HS) code | 85176990 |
Product family | Catalyst |
