Cisco Catalyst Ethernet Switch WS-C3850-24P-L
Cisco Catalyst WS-C3850-24P-L is next generation stackable enterprise level switch and integrated with 24 Ethernet POE + ports with upgradeable LAN base IOS image. WS-C3850-24P-L is designed for access layer with 255 VLANs and IEEE802.3at POE+ standard supporting. Cisco 3850 series combines both wired and wireless capability on a single platform. The LAN base IOS features support up to 255 VLANs and disable wireless controller functionality. To enable wireless controller functionality, clients need to purchase wireless license and IP base license. Power stack capacity is supported by Cisco Stackpower technology to provide power redundancy among stack members. Three network uplink modules option
enhance the flexibility for customer to choose network uplink connectivity. For the stacking purpose, LAN base switches can only stack with other Catalyst 3850 Series LAN base, mix stack with IP base or IP service feature set is not supported.
Cisco 3850 series 24 ports LAN Base stackable switch delivers Cisco StackWise-480 technology that supports up to 480 Gpbs stack bandwidth.
Quick Specs

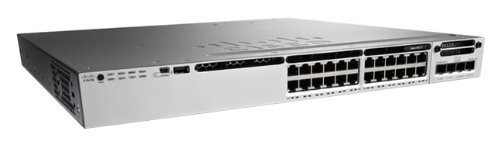

Figure 1 shows the appearance of Cisco WS-C3850-24T-L.

Table 1 shows the Quick Specs.
Product Code |
WS-C3850-24T-L |
Enclosure Type |
1 RU |
Feature Set |
LAN Base |
Network SFP uplink module selection |
C3850-NM-4-1G
C3850-NM-2-10G |
Ports |
24 * 10/100/1000 Ethernet ports |
Maximum stacking number |
9 |
Stack bandwidth |
480 Gpbs |
Switching Capacity |
92 Gpbs |
RAM |
4 GB |
Flash Memory |
2 GB |
Number of AP per switch/stack |
100 |
Number of wireless clients per switch/stack |
2000 |
Dimensions |
4.45 cm x 44.5 cm x 45.0 cm |
Package Weight |
17.49 Kg |
Product Details
Figure 2 shows the front panel of the Cisco WS-C3850-24T-L with blank network module.

Note:
ā |
Mode button |
⣠|
USB Type A storage port |
ā” |
Status LEDs |
⤠|
24 * 10/100/1000 Ethernet ports |
⢠|
USB mini-Type B (console) port |
ā„ |
Network SFP uplink module slot |
Ā·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).
Ā·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
Figure 3 shows the back panel of the Cisco WS-C3850-24T-L.

Noteļ¼
ā |
Ground connector |
⤠|
StackWise port connectors |
ā” |
CONSOLE (RJ-45 console port) |
ā„ |
StackPower connectors |
⢠|
Fan modules |
⦠|
Power supply modules |
⣠|
MGMT port |
|
Figure 4 shows the StackWise-480 and StackPower connectors.
For the stacking purpose, LAN base switches can only stack with other Catalyst 3850 Series LAN base, mix stack with IP base or IP service feature set is not supported.

The Modules, Licenses and Accessories
Table 2 shows some recommended modules,licenses and accessories of this switch.
Models |
Description |
C3850-NM-4-1G |
Cisco 3850 Series 4 x 1GE Network Module |
C3850-NM-2-10G |
Cisco 3850 Series 2 x 10GE Network Module |
C3850-NM-BLANK |
Cisco 3850 Series Blank Network Module |
L-C3850-24-L-E |
C3850-24 LAN Base to IP Services Electronic RTU License |
L-C3850-24-L-S |
C3850-24 LAN Base to IP Base Electronic RTU License |
PWR-C1-350WAC |
Cisco 3850 Series Power Supply 350W AC |
PWR-C1-350WAC/2 |
Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply |
STACK-T1-50CM= |
Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
STACK-T1-1M= |
Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
Compare to Similar Items
Table 3 shows the comparison between WS-C3850-24T-L and WS-C3850-24T-S.
Models |
WS-C3850-24T-L |
WS-C3850-24T-S |
Feature Set |
LAN Base |
IP Base |
Ports |
24 * 10/100/1000 Ethernet ports |
24 * 10/100/1000 Ethernet ports |
