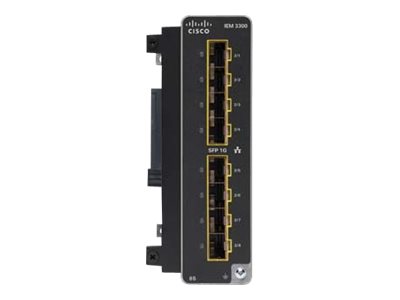

Cisco Catalyst – expansion module – SFP (mini-GBIC) x 8

Add to Wishlist

Cisco Catalyst – Expansion module – SFP (mini-GBIC) x 8 – remanufactured – for Catalyst IE3300 Rugged Series

5,799.00 د.إ

Add to Wishlist

The Cisco Catalyst IE3300 Rugged series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3400 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

The IE3300 series runs Cisco IOS XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch.

SKU: IEM-3300-8S-RF 1 Category: Tag:
General
Device Type Expansion module
Form Factor DIN rail mountable
Networking
Ports SFP (mini-GBIC) x 8
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-X
Data Link Protocol Gigabit Ethernet
Features Cisco Gigabit EtherChannel, Syslog support, MAC address filtering, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, SSH support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), SNMP support, IGMP filtering, SmartPort technology, Bridge protocol data unit (BPDU), Secure Copy (SCP), Network Timing Protocol (NTP), IGMP querier, VLAN Trunking Protocol (VTP) v.3, Rapid Reconfiguration of Spanning Tree (RSTP), VLAN Trunking Protocol (VTP) v.2
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, FCC CFR47 Part 15, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-78, MIL-STD-810, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, IEC 60079-0, EN 60079-0, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0
Expansion / Connectivity
Interfaces 8 x 1000Base-X – SFP (mini-GBIC)
Miscellaneous
MTBF 6,810,960 hours
Pricing Type Remanufactured
Power
Power Consumption Operational 13 Watt
Dimensions & Weight
Width 2.6 in
Depth 5.3 in
Height 6 in
Weight 32.1 oz
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 158 °F
Compatibility Information
Designed For Cisco Catalyst IE3300 Rugged Series
