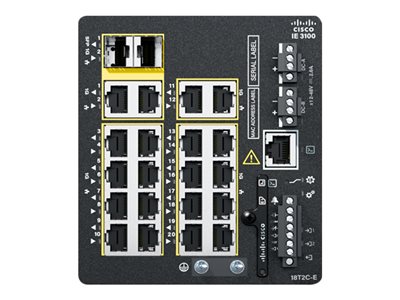

Cisco Catalyst IE3100 Rugged Series – Network Essentials – switch – 20 ports – managed
Cisco Catalyst IE3100 Rugged Series – Network Essentials – switch – managed – 18 x 10/100/1000 + 2 x combo Gigabit – DIN rail mountable
AED12,499.00
Easily place in confined spaces. Integrate within connected industrial solutions that are custom-built and turnkey.
| Device Type | Switch – 20 ports – managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 18 x 10/100/1000 + 2 x combo Gigabit |
| Capacity | Queues: 8 ¦ IGMP groups: 512 ¦ VLANs supported: 256 ¦ Indirect IPv4 routes: 2000 ¦ STP instances: 128 |
| MAC Address Table Size | 8000 entries |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, NETCONF, RESTCONF, Modbus, NTP, ICMP, DHCP, IPv4, IPv6, YANG, Syslog, MIB |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | BOOTP support, IGMP snooping, DiffServ support, surge protection, DHCP snooping, QoS, MLD snooping, DAI, PVST+, Rapid PVST+, fanless, RSPAN, PTP, shock-resistant, vibration-proof, PROFINET, iPnP, Storm Control, REP, SCP, AAA, SPAN, EEM, VTP v.3, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, L2TP support, VTP v.2, MRP, EtherChannel support, NEAT, CIP support, UDP support, TCP support, FTP support, RPVST, FSPAN |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| RAM | 4 GB |
| Built-in Devices | SD card reader |
| Expansion / Connectivity | 18 x 10/100/1000 Base-T RJ-45 downlink ¦ 2 x Gigabit LAN uplink ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x micro-USB Type B ¦ 2 x alarm input |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | External power adapter |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 12 – 48 V |
| Power Consumption Operational | 36.7 Watt |
| Miscellaneous | MTBF: 642,050 hours |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, RoHS, EN 61000-4-8, X.509 v3, EN 61000-6-4, IEC 60068-2-30, WEEE, IEC 60068-2-27, IEC 60068-2-6, ANATEL, IP54, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14, DNV, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, IP30, VCCI Class A, NEMA TS-2, RCM, CNS 13438, EN 50121-3-2, EN 61326, EN 61000-4-10, IEC 61850-3, IEC 60068-2-3, EN 61373, FCC CFR47 Part 15 B Class A, IEEE 1613, EN 60068-2-1, KN32, KN35, UL/CSA60950-1, AS/NZS CISPR 24, AS/NZS CISPR 32 Class A, IEC 62368-1, EN 55032 Class A, EN 60079-15, IEC 60079-0, IEC 60079-15, EN 60079-0, UL 121201, CSA C22.2 No. 213, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15, EN 60068-2-2, TEC, EN 60079-7, IEC 60079-7, UL/CSA 62368-1, EN 61131 |
| Dimensions & Weight | Width: 4.3 in ¦ Depth: 5.1 in ¦ Height: 5 in ¦ Weight: 2.8 lbs |
