switch ports

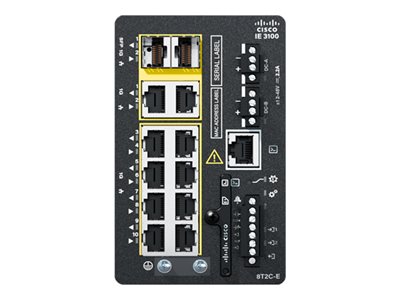

Cisco Catalyst IE3105 Rugged Series – Network Essentials – switch – 10 ports – managed
Cisco Catalyst IE3105 Rugged Series – Network Essentials – switch – managed – 8 x 10/100/1000 + 2 x combo Gigabit – DIN rail mountable
AED11,899.00
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
| Device Type | Switch – 10 ports – managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x combo Gigabit |
| Capacity | Queues: 8<br>IGMP groups: 512<br>VLANs supported: 256<br>Indirect IPv4 routes: 2000<br>STP instances: 128 |
| MAC Address Table Size | 8000 entries |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, NETCONF, RESTCONF, Modbus, NTP, ICMP, DHCP, IPv4, IPv6, YANG, Syslog, MIB |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 2 switching, NAT support, BOOTP support, IGMP snooping, DiffServ support, surge protection, DHCP snooping, QoS, MLD snooping, DAI, PVST+, Rapid PVST+, fanless, RSPAN, PTP, shock-resistant, vibration-proof, PROFINET, iPnP, Storm Control, REP, SCP, AAA, SPAN, EEM, VTP v.3, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, L2TP support, VTP v.2, MRP, EtherChannel support, NEAT, CIP support, UDP support, TCP support, FTP support, RPVST, FSPAN |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| RAM | 4 GB |
| Built-in Devices | SD card reader |
| Expansion / Connectivity | 8 x 10/100/1000 Base-T RJ-45 downlink<br>2 x 1000Base-T RJ-45 uplink<br>2 x 100/1000Base-X SFP uplink<br>1 x serial (RS-232) RJ-45<br>1 x micro-USB Type B<br>2 x alarm input |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | External power adapter |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 12 – 48 V |
| Power Consumption Operational | 28 Watt |
| Miscellaneous | MTBF: 774,680 hours<br>Compliant Standards: EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, and many more listed standards |
| Dimensions & Weight | Width: 3 in<br>Depth: 5.1 in<br>Height: 5 in<br>Weight: 2.29 lbs |
