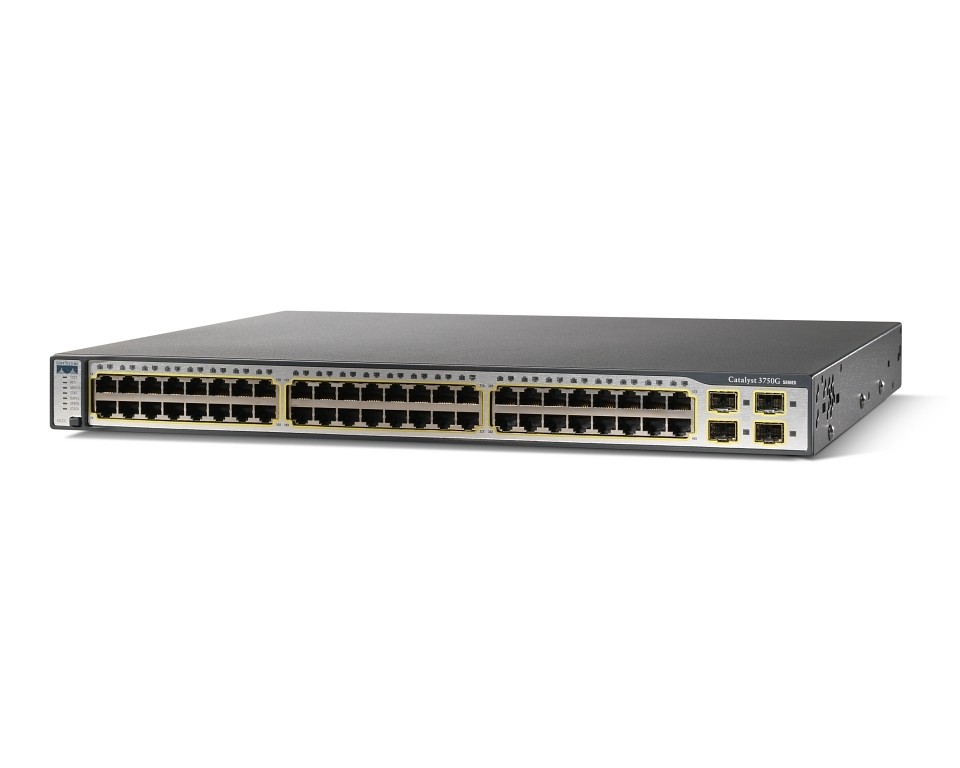

Cisco Catalyst 3750G-48TS is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time
• 48 Ethernet 10/100/1000 ports
• 4 SFP-based Gigabit Ethernet ports
• 32-Gbps, high-speed stacking bus
• Innovative stacking technology
• 1 RU stackable, multilayer switch
• Enterprise-class intelligent services delivered to the network edge
• IP Services software feature set (IPS)
• Provides full IPv6 dynamic routing
WS-C3750G-48TS-E (USED) Specification
| WS-C3750G-48TS-E data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750G-48TS-E |
| Product Type | Managed, Stackable 48 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density – Uplinks | 48 x 10/100/1000 Ethernet Ports + 4 x SFP |
| MAC Address Table Size | 12K entries |
| Max Number of Stacks | 9 |
| Routing Protocol | OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPF for IPv6, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| DRAM Memory | 128 MB |
| Flash Memory | 32 MB Flash |
| LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, status |
| Connectivity / Expansion Slots | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x console – RJ-45 – management Network stack device : 4 x SFP (mini-GBIC) |
| Power Supply Specifications | |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 160 Watt |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 40.9 cm |
| Height | 4.4 cm |
| Weight | 6.4 kg |
| MTBF | 165,243 hour(s) |
| Compliant Standards | CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548 |
| System Software | |
| Software Included | Cisco IOS IP Services |
