Lower TCO with Fast Ethernet Access Deliver reliable and cost-effective network access with the Cisco Catalyst 2960-Plus Series of Fast Ethernet switches. These products provide the operational benefits of Cisco IOS Software for a range of wired access applications, including branches, conventional office workspaces, and infrastructure networks. Cisco Catalyst 2960-Plus Switches feature: – IEEE 802.3af-compliant Power over Ethernet (PoE) – LAN Base or LAN Lite Cisco IOS Software feature set – SmartOperations tools that simplify deployment and reduce the cost of network administration – Cisco EnergyWise technology to manage energy consumed by connected devices – An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement Applications and Benefits The Cisco Catalyst 2960-Plus Series provides cost-effective, enterprise class Ethernet switching for: – Branch offices, remote sites, and retail locations – Conventional desktop workspaces – Building infrastructure, physical security, and other nontraditional access applications – Benefits of the 2960-Plus include: – Robust quality of service (QoS) that prioritizes voice and critical business applications – Flexible security features that can limit access to the network and mitigate threats – Tools that reduce total cost of ownership through simplified operations and automation
ethernet

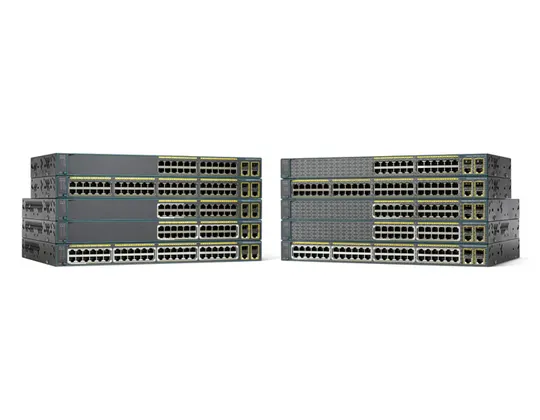

Cisco Catalyst WS-C2960+24TC-L network switch Managed L2 Fast Ethernet (10/100) Black
Catalyst 2960-Plus switch, 24 x 10/100 Ethernet Ports, 2 dual mode Uplinks, LAN Base
AED8,799.00
Switch type | Managed |
Switch layer | L2 |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
MIB support | Yes |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Combo SFP ports quantity | 2 |
Console port | RJ-45 |
Networking standards | IEEE 802.1p, IEEE 802.1x |
Full duplex | Yes |
Flow control support | Yes |
Link aggregation | Yes |
Rate limiting | Yes |
VLAN support | Yes |
Forwarding rate | 6.5 Mpps |
Jumbo frames support | Yes |
Jumbo frames | 9018 |
Security algorithms | 802.1x RADIUS |
MAC address filtering | Yes |
Multicast support | Yes |
Stackable | No |
Product colour | Black |
LED indicators | Yes |
Memory type | DRAM |
Internal memory | 128 MB |
Flash memory | 64 MB |
Noise level | 33 dB |
Mean time between failures (MTBF) | 667000 hours |
Harmonized System (HS) code | 85176990 |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Power consumption (typical) | 18.6 W |
Operating temperature (T-T) | -5 – 40 °C |
Storage temperature (T-T) | -25 – 70 °C |
Operating relative humidity (H-H) | 10 – 95% |
Storage relative humidity (H-H) | 10 – 95% |
Operating altitude | 0 – 3000 m |
Non-operating altitude | 0 – 4000 m |
Width | 450 mm |
Depth | 242 mm |
Height | 44 mm |
Weight | 3.6 kg |
User guide | Yes |
Manual | Yes |
Bandwidth | 16 Gbit/s |
Bundled software | Cisco IOS LAN Base |
Power LED | Yes |
Product family | Catalyst |
