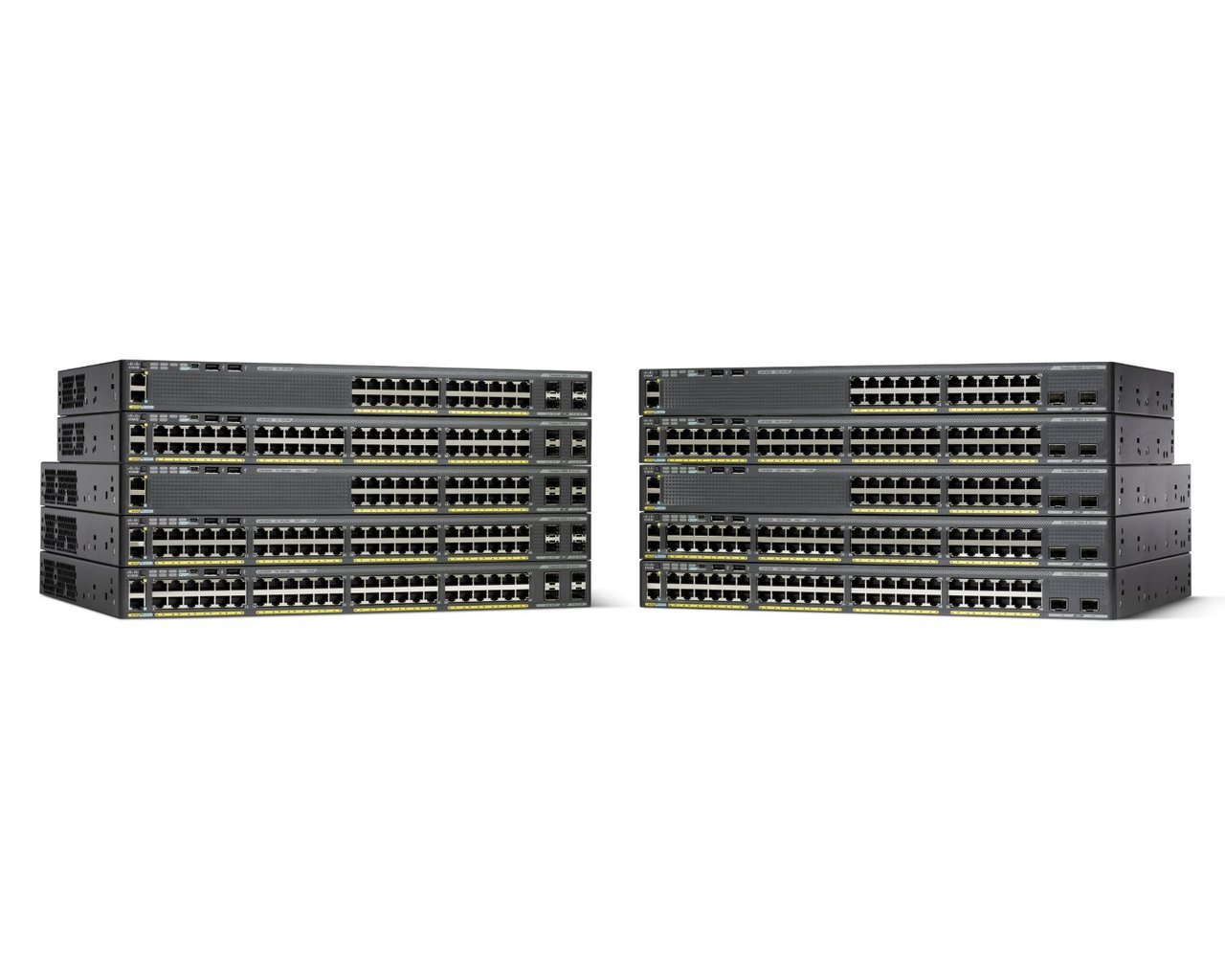

Cisco Catalyst 2960-X Series Switch
- Twenty four (24) 10/10/1000 Ethernet Gigabit ports and Two (2) 10G SFP+ uplinks
- Dual Core CPU with 512MB Memory (DRAM) and 128MB flash memory
- Support up to 8 switches stacking with 80G of stack throughput (optional)
- Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port
- Energy-efficient solution reduces power consumption
- LAN base Cisco IOS software feature set
Cisco Catalyst WS-2960X-24PD-L LAN Base Layer 2 stackable switch is comprised of 48 Ethernet 10/100/1000 ports and 2 * 10G SFP+ uplink interfaces. Advanced energy management solution with intelligent services reduces the power cost of business development. FlexStack plus technology supports up to 8 switches stacking with the same 2960-X LAN base series offering up to 80Gbps of stack throughput or up to 4 switches stacking when mixed with 2960-S LAN base series switches providing up to 40G of stack throughput. Cisco IOS software features enhance forwarding process and USB/Ethernet management interface simplify the operations. LAN base image delivers comprehensive layer 2 switching functionalities with enhanced QoS features which power the access layer switching performance. Netflow lite simplifies the network traffic monitoring procedure by capturing and recording packet flows in order to troubleshoot the thrill of the network.
WS-C2960X-24PD-L Specifications
model info: | WS-C2960X-24PD-L | Ā |
enclosure type | Rack-mountable – 1U | Ā |
Ports | 24 x 10/100/1000 + 2 x 10G SFP+ | Ā |
Network management Interface | 10/100/1000 Mbps Ethernet (RJ-45) | Ā |
Available PoE Power | 370W | Ā |
Forwarding bandwidth(Gbps) | 108Gbps | Ā |
Maximum stacking number | 8 | Ā |
Stack Bandwidth | 80G | Ā |
Forwarding Performance | 95.2Mpps | Ā |
Switching bandwidth | 216Gbps | Ā |
Maximum active VLANs | 1023 | Ā |
MAC Address Table Size | 16K (default) | Ā |
CPU | APM86392 600MHz dual core | Ā |
RAM | 512 MBĀ | Ā |
Flash Memory | 128 MBĀ | Ā |
Status Indicators | Per-port status:Ā Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed | |
Expansion / Connectivity | Ā | Ā |
Console ports | USB (Type-B), Ethernet (RJ-45) | Ā |
Stacking cable | Optional | Ā |
Power Redundancy | Option (PWR-RPS2300) | Ā |
Voltage range (Auto) | 110V-240V | Ā |
Power Consumption Operational | 0.49KVA | Ā |
Miscellaneous | Ā | Ā |
Width | 17.5 Inches (44.5 Cm) | Ā |
Depth | 14.5 Inches (36.8 Cm) | Ā |
Height | 1.75 Inches (4.5 Cm) | Ā |
Weight | 12.7 Pounds (5.7 Kg) | Ā |
Rack Mounting Kit | optional | Ā |
Ā MTBF in hours | 325,780 | Ā |
Compliant Standards | āĀ IEEE 802.1D Spanning Tree Protocol āĀ IEEE 802.1p CoS Prioritization āĀ IEEE 802.1Q VLAN āĀ IEEE 802.1s āĀ IEEE 802.1w āĀ IEEE 802.1X āĀ IEEE 802.1ab (LLDP) āĀ IEEE 802.3ad āĀ IEEE 802.3af and IEEE 802.3at āĀ IEEE 802.3ah (100BASE-X single/multimode fiber only) āĀ IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
āĀ IEEE 802.3 10BASE-T āĀ IEEE 802.3u 100BASE-TX āĀ IEEE 802.3ab 1000BASE-T āĀ IEEE 802.3z 1000BASE-X āĀ RMON I and II standards āĀ SNMP v1, v2c, and v3 āĀ IEEE 802.3az āĀ IEEE 802.3ae 10Gigabit Ethernet āĀ IEEE 802.1ax āIEEE 802.3af and IEEE 802.3at |
System software / license | Ā | Ā |
System software | IOS LAN BASE | Ā |
license | NERGY-MGT-100-K9, EW-DO-100-DE | Ā |
features | āRPS SupportĀ āĀ Jumbo FramesĀ āĀ VLANSĀ āVoice VlanĀ āVTPv2Ā āCDPv2Ā āLLDPĀ āĀ 802.3ad LACPĀ āPVST/PVST+Ā āĀ 802.1W/802.1SĀ āPort Fast/Uplink FastĀ āĀ port CoS Trust and OverrideĀ āĀ Trusted BoundaryĀ āĀ ACL ClassificationĀ āingress PolicingĀ āAuto QoSĀ āĀ 802.1p queuesĀ āĀ SchedulingĀ āĀ Priority QueuingĀ āĀ Configure CoS Priority QueuesāConfigure CoS Priority QueuesĀ āĀ Configure Queue WeightsĀ āĀ Configure Buffers and ThresholdsĀ āClass & Policy MapsĀ āĀ Modify CoS and DSCP MappingĀ āWeighted Tail DropĀ āĀ DSCP transparencyĀ | Ā |
Network security | āĀ SSH, SSL and SCPĀ āĀ RADIUS and TACACS+Ā āSNMPv3 cryptoĀ āĀ 802.1xĀ āĀ 802.1x Accounting / MIBāĀ 802.1x w/ port securityĀ āĀ 802.1x w/Voice VLANĀ ā802.1x Guest VLANĀ āĀ 802.1x VLAN assignmentā802.1x Auth-Fail VLANĀ āĀ 802.1x AAA Fail Openā802.1x WOLĀ āĀ 802.1x MAC-Auth BypassĀ ā802.1x Web-AuthĀ ā802.1x Multi-Domain AuthĀ āĀ IPv6 First-Hop SecurityĀ āLayer 2-4 ACLs (Port, Time, and DSCP-based)Ā āDHCP SnoopingĀ āDHCP Option 82āDHCP ServerĀ āIPv6 HostĀ āIPv6 MLD SnoopingāMVRĀ āĀ BPDU/Root GuardĀ āĀ Port SecurityĀ āĀ Private VALN EdgeĀ āĀ Storm ControlĀ āĀ Block unknown unicast and multicastĀ āĀ IGMP SnoopingĀ āĀ IGMP Filter/Throttle | Ā |
Management and Troubleshooting | āAuto-MDOX āTDR ā UDLD ā IP SLA Responder ā layer 2 / IP Traceroute ā SPAN ā RSPAN ā Express Setup ā Device Manager ā Cisco Network Assistant ā Smartports + Advisor ā Troubleshooting Advisor ā Drag-and-drop Cisco IOS Upgrade ā IP Address DHCP ā Autoinstall with saved configuration ā Configuration Replace ā DHCP Auto Image Upgrade ā DHCP Port Based Allocation ā Error Disable MIB | Ā |
Environmental Ranges | Ā | Ā |
Ā | Fahrenheit | Centigrade |
Operating temperature up to 5000 ft (1500 m) | 23ĀŗF to 113Āŗ | -5ĀŗC to 45ĀŗC |
Operating temperature up to 10,000 ft (3000 m) | 23ĀŗF to 104ĀŗF | -5ĀŗC to 40ĀŗC |
Short-term exception at sea level* | 23ĀŗF to 131ĀŗF | -5ĀŗC to 55ĀŗC |
Short-term exception up to 5000 feet (1500 m)* | 23ĀŗF to 122ĀŗF | -5ĀŗC to 50ĀŗC |
Short-term exception up to 10,000 feet (3000 m)* | 23ĀŗF to 113ĀŗF | -5ĀŗC to 45ĀŗC |
Short-term exception up to 13,000 feet (4000 m)* | 23Āŗ to 104ĀŗF | -5ĀŗC to 40ĀŗC |
Storage temperature up to 15,000 feet (4573 m) | -13Āŗ to 158ĀŗF | -25Āŗ to 70ĀŗC |
Ā | Feet | Meters |
Operating altitude | Up to 10,000 | Up to 3000 |
Storage altitude | Up to 13,000 | Up to 4000 |
Operating relative humidity | 10% to 95% noncondensing | Ā |
Storage relative humidity | 10% to 95% noncondensing |
Note: For stacking purpose, C2960X-STACK module is necessary.
