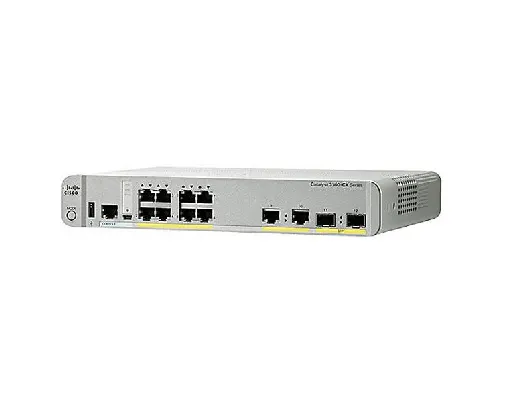

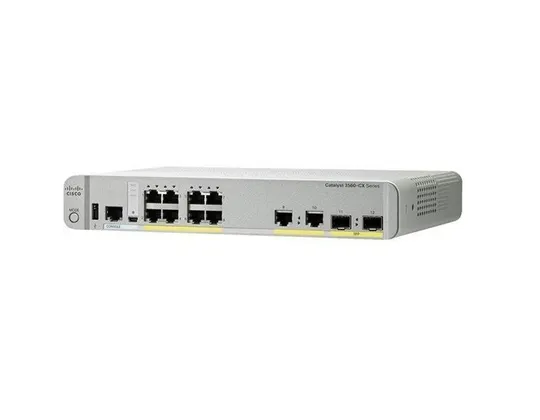

Cisco Catalyst WS-C3560CX-8TC-S network switch Managed L3 Gigabit Ethernet (10/100/1000) White

Add to Wishlist

AED8,399.00

Add to Wishlist
Feature Details
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
ARP inspection Y
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 2
SFP module slots quantity 2
Fiber optic connector SFP
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Copper ethernet cabling technology 1000BASE-T, 100BASE-T, 10BASE-T
Full duplex Y
IP routing Y
Link aggregation Y
Spanning tree protocol Y
VLAN support Y
Number of VLANs 4000
Jumbo frames support Y
Jumbo frames 9198
Access Control List (ACL) Y
SSH/SSL support Y
Authentication MAC-based authentication
Rack mounting Y
Stackable N
Product colour White
Internal memory 512 MB
Flash memory 128 MB
Mean time between failures (MTBF) 756260 h
Harmonized System (HS) code 85176990
Power supply included Y
AC input voltage 100 – 240 V
Input current 0.5 – 0.2 A
Power consumption (typical) 30 W
Power over Ethernet (PoE) N
Operating temperature (T-T) -5 – 45 °C
Storage temperature (T-T) -25 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3048 m
Non-operating altitude 0 – 4000 m
Heat dissipation 170.6 BTU/h
Width 269.2 mm
Depth 213.4 mm
Height 44.4 mm
Weight 1.72 kg
Product family Catalyst
