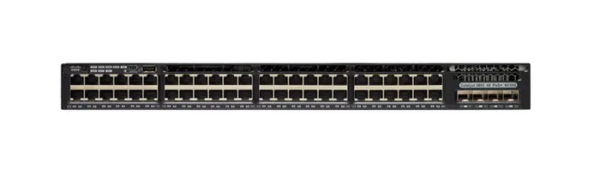

Cisco Catalyst WS-C3650-48TS-L network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Add to Wishlist

Catalyst 3650-48TS-L, Standalone, 1U, 48 x 10/100/1000 Ethernet, 4x1G Uplink ports, DRAM 4GB, Flash 2GB, 250W, LAN Base

44,999.00 د.إ

Add to Wishlist

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

Categories: , Tag:
Feature Description
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Web-based management Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Full duplex Y
IP routing Y
Link aggregation Y
Rate limiting Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
VLAN support Y
Number of VLANs 4094
MAC address table 32000 entries
Switching capacity 176 Gbit/s
Jumbo frames support Y
DHCP features DHCP server
Access Control List (ACL) Y
IGMP snooping Y
SSH/SSL support Y
Multicast support Y
Rack mounting Y
Stackable Y
Form factor 1U
Product colour Black
LED indicators Y
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Memory type DRAM
Internal memory 4096 MB
Flash memory 2000 MB
Noise level 48 dB
Mean time between failures (MTBF) 527580 h
Harmonized System (HS) code 85176990
Redundant power supply (RPS) support Y
Number of power supply units 1
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (typical) 82.85 W
Power over Ethernet (PoE) N
Operating temperature (T-T) -5 – 50 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 96%
Operating altitude 0 – 1500 m
Non-operating altitude 0 – 5000 m
Width 445 mm
Depth 448 mm
Height 44 mm
Weight 7.21 kg
Bandwidth 160 Gbit/s
Product family Catalyst
