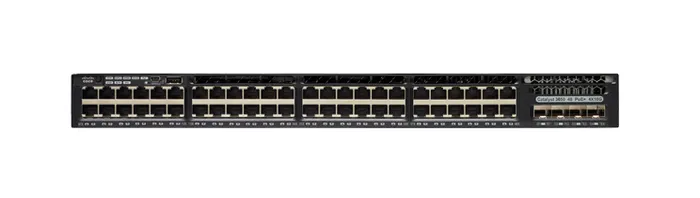

Cisco Catalyst WS-C3650-48TS-S network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Catalyst 3650-48TS-S, Standalone, 1U, 48 x 10/100/1000 Ethernet, 4x1G Uplink ports, DRAM 4GB, Flash 2GB, 250W, IP Base
AED65,399.00
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
| Feature | Description |
|---|---|
| Operating altitude | 0 – 1500 m |
| Non-operating altitude | 0 – 5000 m |
| Width | 445 mm |
| Depth | 448 mm |
| Height | 44 mm |
| Weight | 7.21 kg |
| Bandwidth | 160 Gbit/s |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Full duplex | Y |
| IP routing | Y |
| Link aggregation | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Number of VLANs | 4094 |
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Y |
| DHCP features | DHCP server |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Multicast support | Y |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Memory type | DRAM |
| Internal memory | 4096 MB |
| Flash memory | 2000 MB |
| Noise level | 48 dB |
| Mean time between failures (MTBF) | 527580 h |
| Harmonized System (HS) code | 85176990 |
| Redundant power supply (RPS) support | Y |
| Number of power supply units | 1 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 82.85 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 96% |
| Product family | Catalyst |
