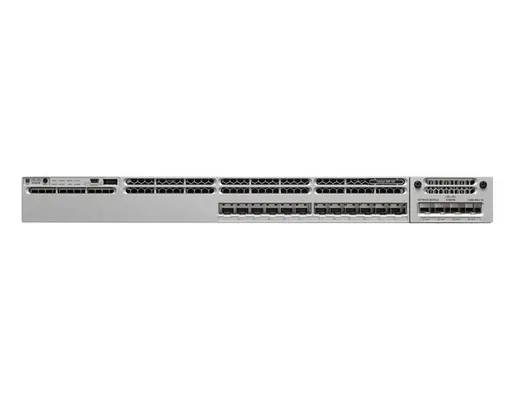

Cisco Catalyst WS-C3850-12S-E network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey


Stackable 12 SFP Ethernet ports, 1 RU, IP Base feature set

93,399.00 د.إ

Highlights

The CiscoĀ®CatalystĀ® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Category: Tag:
Feature Details
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 12
Console port RJ-45/USB Type-B
Power connector DC-in jack
10G support N
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Spanning tree protocol Y
MAC address table 32000 entries
Switching capacity 68 Gbit/s
Forwarding rate 68.4 Mpps
Jumbo frames support Y
Jumbo frames 9198
IGMP snooping Y
Security algorithms 802.1x RADIUS, SNMP, SSH
Multicast support Y
Rack mounting Y
Stackable Y
Form factor 1U
Product colour Grey
LED indicators Y
Certification 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24
Built-in processor Y
Internal memory 4000 MB
Flash memory 2000 MB
Mean time between failures (MTBF) 315840 h
Harmonized System (HS) code 85176990
Sustainability certificates ENERGY STAR
AC input voltage 115 – 230 V
AC input frequency 50/60 Hz
Power over Ethernet (PoE) N
Operating temperature (T-T) -5 – 45 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 90%
Operating altitude 0 – 3000 m
Heat dissipation 1207 BTU/h
Width 450 mm
Depth 445 mm
Height 44.5 mm
Weight 7.02 kg
Product family Catalyst
