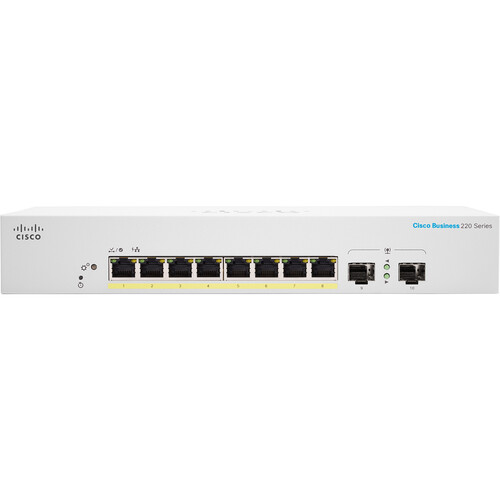

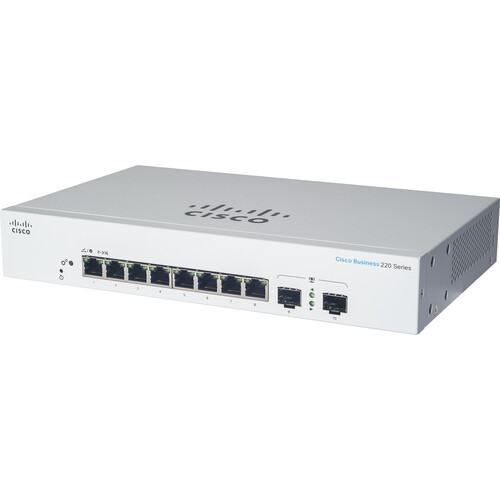

Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Compliant Managed Network Switch with SFP


Key Features
  • 8 x Gigabit Ethernet PoE Ports
  • 2 x Gigabit SFP Slots
  • 20 Gb/s Switching Capacity
  • 14.88 Mpps Forwarding Rate
  • Desktop Mountable Design
  • 130W Power Budget
  • Works with Cisco Business Dashboard

1,199.00 د.إ

Cisco CBS220-8FP-E-2G-NAĀ Overview

Quickly expand your business’s network capacity to support computers and other connected devices with theĀ CBS220-8FP-E-2G 8-Port Gigabit PoE Compliant Managed Network SwitchĀ fromĀ Cisco. This managed rackmount switch features eight PoE-compliant Gigabit Ethernet ports with a 130W budget to operate compatible devices such as IP security cameras, wireless access points, and VoIP phones. There are also two 1GbE SFP ports available for high-speed fiber connections. Its extensive Layer 2 features include link aggregation to create up to eight groups of ports for multi-Gig connections to compatible devices. Its 20 Gb/s switching capacity and 14.88 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS220-8FP-E-2G and its connected devices. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background.

SKU: CBS220-8FP-E-2G-NA Category: Tag:
Key Specs
Inputs/Outputs
8x RJ45 Gigabit Ethernet PoE (Unspecified)
2x SFP Gigabit Ethernet
Stackable
No
Switching Bandwidth
20 Gb/s
PoE Power Budget
130 W
Stackable
No
Protocols
Layer Services Supported
Layer 2
Supported Protocols
Auto-MDIX/MDI
Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
RADIUS
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9216 Bytes
MAC Address Table Size
8K
Security
Security Features
DoS Attack Prevention
RADIUS Authentication
Performance
Forwarding Rate
14.88 Mpps
Switching Bandwidth
20 Gb/s
Packet Buffer
4.1 Mb
Electrical
PoE Power Budget
130 W
Power Draw
151.4 W (Max)
Input Power
110 to 220 VAC, 50 / 60 Hz
Power Supply Type
External
General
Certifications
No
Operating Conditions
32 to 122°F / 0 to 50°C at 10 to 90% Humidity
Storage Conditions
-4 to 158°F / -20 to 70°C at 10 to 90% Humidity
Cooling System
Passive
Mean Time Between Failures (MTBF)
0.6 Million Hours
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
No
Dimensions
11 x 6.7 x 1.7″ / 279 x 170 x 44Ā mm
Weight
2.6Ā lb / 1.18Ā kg
Packaging Info
Package Weight
8.005 lb
Box Dimensions (LxWxH)
19.8 x 11.4 x 4.1″
