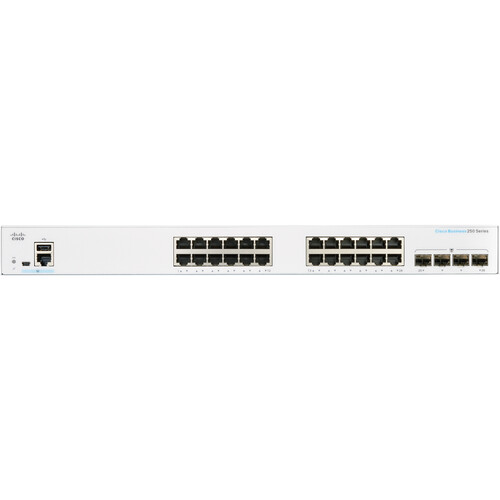

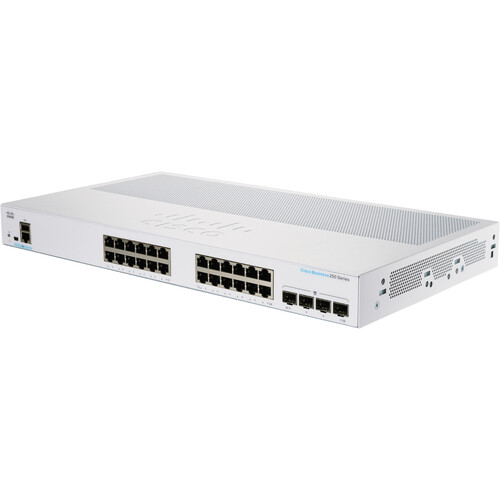

Cisco CBS250-24T-4G 24-Port Gigabit Managed Switch with SFP

Add to Wishlist
Key Features
  • 24 x Gigabit Ethernet Ports
  • 4 x Gigabit SFP Ports
  • 56 Gb/s Switching Capacity
  • 41.66 Mpps Forwarding Rate
  • 800 MHz ARM Processor
  • 512MB RAM
  • Rack-Mountable Design
  • Comprehensive Layer 2 & 3 Features
  • Works with Cisco Business Dashboard

AED1,499.00

Add to Wishlist

Cisco CBS250-24T-4G-NA Overview

Quickly expand your business’s network capacity to support computers, smart TVs, storage, and other devices CBS250-24T-4G 24-Port Gigabit Managed Switch from Cisco. This managed rackmount switch features 24 Gigabit Ethernet ports alongside four Gigabit fiber line SFP ports. Its extensive Layer 2 and Layer 3 features include link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices. Its 56 Gb/s switching capacity and 41.66 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-24T-4G and its connected devices.

Performance
The CBS250-24T-4G is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 56 Gb/s switching capacity and 41.66 Mpps forwarding rate
Layer 3 Static Routing
Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
Compact Design
With a sleek and compact 1 RU design, the CBS250-24T-4G can fit into wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background
Category: Tag:
Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet
4x SFP Gigabit Ethernet
1x USB-A
Stackable
No
Switching Bandwidth
56 Gb/s
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
8K
Multicast Groups
255
Security
Security Features
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Forwarding Rate
41.66 Mpps
Switching Bandwidth
56 Gb/s
Priority Queues
8
Packet Buffer
1.5 MB
Computer
Flash Memory
256 MB
Memory
512 MB
Electrical
Power Draw
25.91 W (Max)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
No
Operating Conditions
27 to 82°F / -5 to 50°C at 10 to 90% Humidity
Storage Conditions
-13 to 158°F / -25 to 70°C at 10 to 90% Humidity
Noise Level
0.0 dB
Cooling System
Passive
Mean Time Between Failures (MTBF)
2.0 Million Hours
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.5 x 9.4 x 1.7″ / 445 x 240 x 44 mm
Weight
5.8 lb / 2.63 kg
Packaging Info
Package Weight
9.355 lb
Box Dimensions (LxWxH)
22.6 x 14.5 x 4.2″
