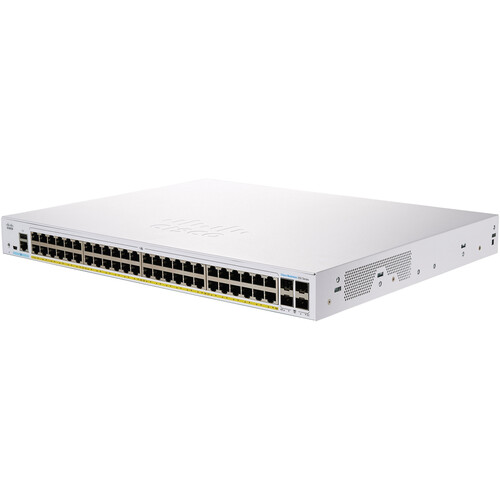

Cisco CBS250-48P-4G 48-Port Gigabit Ethernet PoE+ Compliant Smart Switch with SFP


Key Features
  • 48-x PoE+ GbE Ports
  • 4 x GbE SFP Ports
  • 104 Gb/s Switching Capacity
  • 77.38 Mpps Forwarding Rate
  • 800 MHz ARM Processor
  • 512MB RAM
  • Rack-Mountable Design
  • 370W Power Budget
  • Comprehensive Layer 2 & 3 Features
  • Works with Cisco Business Dashboard

د.إ4,299.00

Cisco CBS250-48P-4G-NAĀ Overview

Quickly expand your business’s network capacity to support powered devices such as IP security cameras, wireless access points, VoIP phones, and more with theĀ CBS250-48P-4G 48-Port Gigabit Ethernet PoE+ Compliant Smart Switch with SFPĀ fromĀ Cisco. The 48 Gigabit Ethernet ports support up to 30W of power each, with a total budget of 370W to operate advanced surveillance cameras, videophones, thin client devices, and more. There are also four 1GbE SFP ports available for fiber connections. Its extensive Layer 2 and Layer 3 features include link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices. Its 104 Gb/s switching capacity and 77.38 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-48P-4G and its connected devices. The single-fan cooling system produces about 37.3 dBA of noise to minimize disruptions to your work environment.

Performance
The CBS250-48P-4G is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 104 Gb/s switching capacity and 77.38 Mpps forwarding rate.
Power over Ethernet
This managed rackmount switch features 48 PoE+ compliant Gigabit Ethernet ports with a 370W budget to operate compatible devices.
Layer 3 Static Routing
Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
Compact Design
With a sleek and compact, 1 RU design, the CBS250-48P-4G can fit into wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Category: Tag:
Key Specs
Inputs/Outputs
48x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP Gigabit Ethernet
1x USB-A
Stackable
No
Switching Bandwidth
104 Gb/s
PoE Power Budget
370 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
8K
Multicast Groups
255
Security
Security Features
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Forwarding Rate
77.38 Mpps
Switching Bandwidth
104 Gb/s
Priority Queues
8
Packet Buffer
3 MB
Computer
Flash Memory
256 MB
Memory
512 MB
Electrical
PoE per Port
30 W
PoE Power Budget
370 W
Power Draw
451.95 W (Max)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
Environmental
Operating Temperature
27 to 82°F / -5 to 50°C
Operating Humidity
10 to 90%
Storage Temperature
-13 to 158°F / -25 to 70°C
Storage Humidity
10 to 90%
Noise Level
34.8 dB
General
Certifications
No
Cooling System
Fan
Mean Time Between Failures (MTBF)
0.8 Million Hours
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.5 x 13.8 x 1.7″ / 445 x 350 x 44Ā mm
Weight
11.97Ā lb / 5.43Ā kg
Packaging Info
Package Weight
15.1 lb
Box Dimensions (LxWxH)
22.5 x 18.9 x 3.8″
