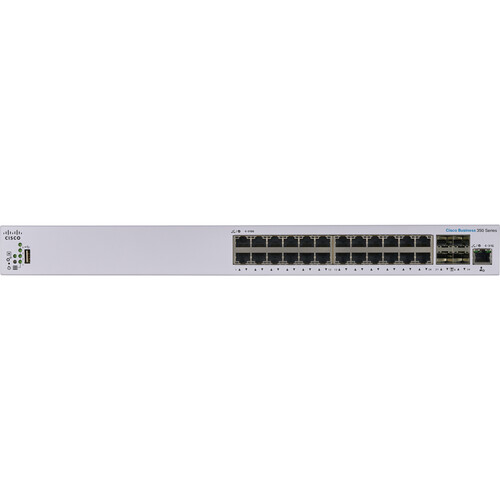

Cisco CBS350-24XT 24-Port 10G Managed Network Switch with 10G SFP+/RJ45 Combo Ports

Add to Wishlist
Key Features
  • 24 x 10G Ethernet Ports
  • 4 x 10G SFP+/RJ45 Combo Ports
  • 480 Gb/s Switching Capacity
  • 240 Mpps Forwarding Rate
  • 800 MHz ARM Processor
  • 512MB RAM
  • Rack-Mountable Design
  • Comprehensive Layer 2 & 3 Features
  • Works with Cisco Business Dashboard

15,099.00 د.إ

Add to Wishlist

Cisco CBS350-24XT-NA Overview

Quickly expand your business’s network capacity to support high-bandwidth connected devices with the CBS350-24XT 24-Port 10G Managed Network Switch from Cisco. This managed rackmount switch features twenty-four 10G RJ45 Ethernet ports that work with compatible wired devices such as computers, network attached storage, and more. There are also four 10G fiber SFP+ / copper RJ45 combo ports available for high-speed uplinks. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight port groups for multi-Gig connections to compatible devices. Its 480 Gb/s switching capacity and 240 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24XT and its connected devices. The four fan design helps to maintain optimal temperatures while the switch to operates quietly in the background.

Performance
The CBS350-24XT is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 480 Gb/s switching capacity and 240 Mpps forwarding rate.
Extensive Security
  • Support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
  • Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
  • The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-24XT switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Compact Design
With a sleek and compact 1 RU design, the CBS350-24XT can fit into most wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Category: Tag:
Key Specs
Inputs/Outputs
24x RJ45 10 GbE
4x SFP+ 10 GbE
1x RJ45
Stackable
No
Switching Bandwidth
480 Gb/s
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
16K
Multicast Groups
2000
Security
Security Features
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Forwarding Rate
240 Mpps
Switching Bandwidth
480 Gb/s
Priority Queues
8
Packet Buffer
3 MB
Computer
Flash Memory
256 MB
Memory
512 MB
Electrical
Power Draw
124.5 W (Max)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
No
Operating Conditions
32 to 122°F / 0 to 50°C at 10 to 90% Humidity
Storage Conditions
-13 to 158°F / -25 to 70°C at 10 to 90% Humidity
Noise Level
41.2 dB
Cooling System
Fan
Mean Time Between Failures (MTBF)
0.5 Million Hours
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm
Weight
11.2 lb / 5.1 kg
Packaging Info
Package Weight
16.445 lb
Box Dimensions (LxWxH)
22.6 x 20.1 x 4.3″
