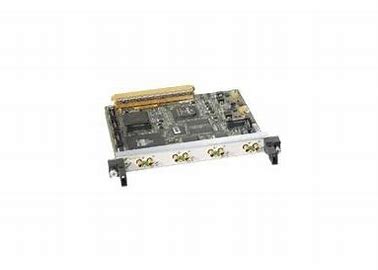

Cisco Channelized T3 (DS0) Shared Port Adapter Version 2 – expansion module
Cisco Channelized T3 (DS0) Shared Port Adapter Version 2 – Expansion module – HDLC, Frame Relay, PPP – T-3 – for Cisco 76XX; ASR 10XX, 90XX, 99XX
AED374,499.00
The combination of channelized and clear channel T3 functions makes the Cisco Channelized T3 Shared Port Adapter version 2 ideal for today’s rapidly changing WAN environment. As an integral part of a service node where customer bandwidth needs are uncertain, the Cisco Channelized T3 SPA version 2 allows service providers to avoid determining. For enterprise remote-site connections Cisco Channelized T3 SPA version 2 reduces equipment expenditures by integrating the capabilities and services of numerous port adapters onto a single SPA. It also provides investment protection by growing with the enterprise to meet the needs of today’s and tomorrow’s aggregation networks.
| Category | Details |
|---|---|
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, PPP |
| Remote Management Protocol | SNMP |
| Line Rate | T-3 |
| Line Coding Format | B3ZS |
| Features | |
| Features | Full duplex capability |
| Compliant Standards | |
| Compliant Standards | ANSI T1.403, ANSI T1.404, ANSI T1.107, VCCI, EN 60950, EN55022, ICES-003, IEC 60950, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, AS/NZS 3548, FCC CFR47 Part 15 |
| Expansion / Connectivity | |
| Interfaces | 4 x T3 |
| Dimensions & Weight | |
| Width | 6.8 in |
| Depth | 7.3 in |
| Height | 0.8 in |
| Weight | 11.99 oz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% |
| Compatibility Information | |
| Designed For | Cisco 7600, 7603, 7603-S, 7604, 7604 Security Bundle, 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle, 7613-S ¦ Cisco ASR 1000 Series Route Processor 1, 1000 Series Route Processor 2, 1001, 1001 VPN and Firewall Bundle, 1001 VPN Bundle, 1001-X, 1002, 1002 BB Bundle, 1002 FPI Bundle, 1002 HA Bundle, 1002 Security HA Bundle, 1002 Security VPN+FW Bundle, 1002 Special Bundle, 1002 VPN and Firewall Bundle, 1002 VPN Bundle, 1002-F, 1002-F Security HA Bundle, 1002-F VPN and Firewall Bundle, 1002-F VPN Bundle, 1002-X, 1002-X 10G HA Bundle, 1002-X AX AVC AES vWAAS Bundle, 1002-X Base Bundle, 1002-X HA Bundle, 1002-X Security + High Availability Bundle, 1002-X Security Bundle, 1002-X Security HA Bundle, 1002-X Special Bundle, 1002-X VPN and Firewall Bundle, 1002-X VPN Bundle, 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FPI Bundle, 1006 HA Bundle, 1006 Security HA Bundle, 1006 VPN and Firewall Bundle, 1006 VPN Bundle, 1009-X, 1013, 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922 |
