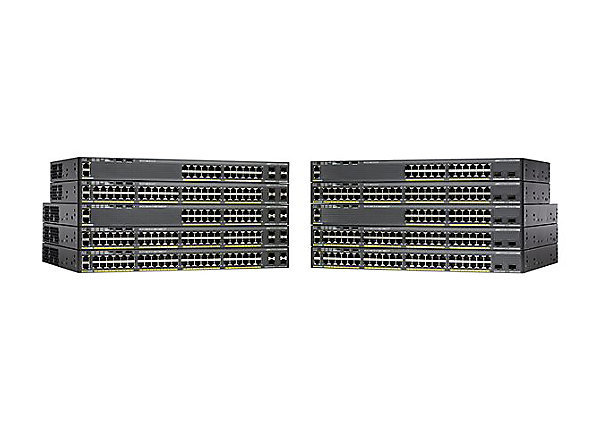

Cisco Catalyst 2960X-48LPD-L – switch – 48 ports – managed – desktop, rack
Main Features
- Switch
- managed
- 48 x 10/100/1000 (PoE+) + 2 x SFP+
- desktop
- rack-mountable
- PoE+
Cisco Catalyst 2960-X series switch is fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.
Capacity | ||||
Type: | Active VLANs | |||
Value: | 1023 | |||
|
||||
Dimensions & Weight | ||||
Depth: | 14.5 in | |||
Height: | 1.8 in | |||
Weight: | 12.79 lbs | |||
Width: | 17.5 in | |||
|
||||
Environmental Parameters | ||||
Humidity Range Operating: | 10 – 95% (non-condensing) | |||
Humidity Range Storage: | 10 – 95% (non-condensing) | |||
Max Operating Temperature: | 113 °F | |||
Max Storage Temperature: | 158 °F | |||
Min Operating Temperature: | 23 °F | |||
Min Storage Temperature: | -13 °F | |||
|
||||
Flash Memory | ||||
Installed Size: | 128 MB | |||
|
||||
Header | ||||
Brand: | Cisco | |||
Compatibility: | PC | |||
Manufacturer: | Cisco Systems | |||
Model: | 2960X-48LPD-L | |||
Packaged Quantity: | 1 | |||
Product Line: | Cisco Catalyst | |||
|
||||
Interface Provided | ||||
Comments: | 12 ports (PoE+) / 24 ports (PoE) | |||
Connector Type: | RJ-45 | |||
Qty: | 48 | |||
Type: | 1000Base-T | |||
|
|
|
||
Qty: | 1 | |||
Type: | Console | |||
|
|
|
||
Comments: | Management | |||
Connector Type: | Type B | |||
Type: | Mini-USB | |||
|
|
|
||
Connector Type: | Type A | |||
Type: | USB | |||
|
|
|
||
Type: | 100Base-TX | |||
|
|
|
||
Comments: | Uplink | |||
Connector Type: | SFP+ | |||
Qty: | 2 | |||
|
||||
Miscellaneous | ||||
Authentication Method: | Kerberos , RADIUS , Secure Shell (SSH) , TACACS+ | |||
Compliant Standards: | AS/NZS 60950-1 , BSMI CNS 13438 Class A , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 Second Edition , EN 300386 , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC CFR47 Part 15 , ICES-003 Class A , IEC 60950-1 Second Edition , KN22 Class A , KN24 , RoHS , RoHS 2011/65/EU , UL 60950-1 Second Edition , VCCI Class A | |||
Height (Rack Units): | 1 | |||
MTBF: | 277,960 hours | |||
|
||||
Networking | ||||
Compliant Standards: | IEEE 802.1ab (LLDP) , IEEE 802.1AX , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3ae , IEEE 802.3af , IEEE 802.3ah , IEEE 802.3at , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z | |||
Features: | Access Control List (ACL) support , ARP support , Auto-negotiation , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Broadcast Storm Control , Cisco EnergyWise technology , Cisco FlexStack Plus , Class of Service (CoS) , DHCP relay , DHCP snooping , DiffServ Code Point (DSCP) support , DiffServ support , Dynamic ARP Inspection (DAI) , Dynamic Trunking Protocol (DTP) support , Energy Efficient Ethernet , Full duplex capability , Hot Standby Router Protocol (HSRP) support , IGMP snooping , IPv6 support , Link Aggregation Control Protocol (LACP) , LLDP support , MAC Address Notification , Management Information Base (MIB) , MLD snooping , Multicast Storm Control , Multicast VLAN Registration (MVR) , Multiple Spanning Tree Protocol (MSTP) support , Port Aggregation Protocol (PAgP) support , Quality of Service (QoS) , Rapid Per-VLAN Spanning Tree Plus (PVRST+) , Rapid Spanning Tree Protocol (RSTP) support , Remote Switch Port Analyzer (RSPAN) , Shaped Round Robin (SRR) , Spanning Tree Protocol (STP) support , Strict Priority Queuing (SPQ) , Syslog support , Trivial File Transfer Protocol (TFTP) support , Uni-Directional Link Detection (UDLD) , Unicast Reverse Path Forwarding (URPF) , Unicast Storm Control , VLAN support | |||
Form Factor: | Desktop , Rack-mountable | |||
Jumbo Frame Support: | 9216 bytes | |||
Manageable: | Yes | |||
Max Units In A Stack: | 8 | |||
PoE Budget: | 370 W | |||
Ports Qty: | 48 | |||
Power Over Ethernet (PoE): | PoE+ | |||
Remote Management Protocol: | CLI , HTTP , RMON 1 , RMON 2 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet | |||
Stackable: | Stackable | |||
Status Indicators: | Link activity , PoE , Port duplex mode , Port transmission speed , RPS (Redundant Power Supply) , Status , System | |||
Subcategory: | Network hubs and switches | |||
Subtype: | Gigabit Ethernet | |||
Type: | Switch | |||
|
||||
Performance | ||||
Type: | Switching capacity | |||
Value: | 216 Gbps | |||
|
|
|
||
Type: | Forwarding performance (64-byte packet size) | |||
Value: | 130.9 Mpps | |||
|
||||
Ports | ||||
Qty: | 48 | |||
Type: | 10/100/1000 (PoE+) | |||
|
||||
Ports (2nd) | ||||
Qty: | 2 | |||
Type: | SFP+ | |||
|
||||
Power Device | ||||
Features: | Redundant Power System (RPS) connector | |||
Frequency Required: | 50/60 Hz | |||
Nominal Voltage: | AC 120/230 V | |||
Power Consumption Operational: | 45.7 Watt | |||
Power Redundancy: | Optional | |||
Type: | Internal power supply | |||
|
||||
Processor | ||||
Clock Speed: | 600 MHz | |||
|
||||
RAM | ||||
Installed Size: | 512 MB | |||
|
||||
Service | ||||
Support Details Full Contract Period: | Lifetime | |||
Support Details Service Included: | Advance parts replacement | |||
Support Details Type: | Limited warranty | |||
|
|
|
||
Support Details Full Contract Period: | 90 days | |||
Support Details Service Included: | Consulting | |||
Support Details Type: | Technical support | |||
|
||||
Service & Support | ||||
Type: | Limited lifetime warranty | |||
|
||||
Service & Support Details | ||||
Response Time: | Next business day | |||
|
||||
Slot Provided | ||||
Free Qty: | 1 | |||
Total Qty: | 1 | |||
Type: | Stacking Module slot | |||
|
||||
Software | ||||
Type: | Cisco IOS LAN Base |
Capacity | ||||
Type: | Active VLANs | |||
Value: | 1023 | |||
|
||||
Dimensions & Weight | ||||
Depth: | 14.5 in | |||
Height: | 1.8 in | |||
Weight: | 12.79 lbs | |||
Width: | 17.5 in | |||
|
||||
Environmental Parameters | ||||
Humidity Range Operating: | 10 – 95% (non-condensing) | |||
Humidity Range Storage: | 10 – 95% (non-condensing) | |||
Max Operating Temperature: | 113 °F | |||
Max Storage Temperature: | 158 °F | |||
Min Operating Temperature: | 23 °F | |||
Min Storage Temperature: | -13 °F | |||
|
||||
Flash Memory | ||||
Installed Size: | 128 MB | |||
|
||||
Header | ||||
Brand: | Cisco | |||
Compatibility: | PC | |||
Manufacturer: | Cisco Systems | |||
Model: | 2960X-48LPD-L | |||
Packaged Quantity: | 1 | |||
Product Line: | Cisco Catalyst | |||
|
||||
Interface Provided | ||||
Comments: | 12 ports (PoE+) / 24 ports (PoE) | |||
Connector Type: | RJ-45 | |||
Qty: | 48 | |||
Type: | 1000Base-T | |||
|
|
|
||
Qty: | 1 | |||
Type: | Console | |||
|
|
|
||
Comments: | Management | |||
Connector Type: | Type B | |||
Type: | Mini-USB | |||
|
|
|
||
Connector Type: | Type A | |||
Type: | USB | |||
|
|
|
||
Type: | 100Base-TX | |||
|
|
|
||
Comments: | Uplink | |||
Connector Type: | SFP+ | |||
Qty: | 2 | |||
|
||||
Miscellaneous | ||||
Authentication Method: | Kerberos , RADIUS , Secure Shell (SSH) , TACACS+ | |||
Compliant Standards: | AS/NZS 60950-1 , BSMI CNS 13438 Class A , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 Second Edition , EN 300386 , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC CFR47 Part 15 , ICES-003 Class A , IEC 60950-1 Second Edition , KN22 Class A , KN24 , RoHS , RoHS 2011/65/EU , UL 60950-1 Second Edition , VCCI Class A | |||
Height (Rack Units): | 1 | |||
MTBF: | 277,960 hours | |||
|
||||
Networking | ||||
Compliant Standards: | IEEE 802.1ab (LLDP) , IEEE 802.1AX , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3ae , IEEE 802.3af , IEEE 802.3ah , IEEE 802.3at , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z | |||
Features: | Access Control List (ACL) support , ARP support , Auto-negotiation , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Broadcast Storm Control , Cisco EnergyWise technology , Cisco FlexStack Plus , Class of Service (CoS) , DHCP relay , DHCP snooping , DiffServ Code Point (DSCP) support , DiffServ support , Dynamic ARP Inspection (DAI) , Dynamic Trunking Protocol (DTP) support , Energy Efficient Ethernet , Full duplex capability , Hot Standby Router Protocol (HSRP) support , IGMP snooping , IPv6 support , Link Aggregation Control Protocol (LACP) , LLDP support , MAC Address Notification , Management Information Base (MIB) , MLD snooping , Multicast Storm Control , Multicast VLAN Registration (MVR) , Multiple Spanning Tree Protocol (MSTP) support , Port Aggregation Protocol (PAgP) support , Quality of Service (QoS) , Rapid Per-VLAN Spanning Tree Plus (PVRST+) , Rapid Spanning Tree Protocol (RSTP) support , Remote Switch Port Analyzer (RSPAN) , Shaped Round Robin (SRR) , Spanning Tree Protocol (STP) support , Strict Priority Queuing (SPQ) , Syslog support , Trivial File Transfer Protocol (TFTP) support , Uni-Directional Link Detection (UDLD) , Unicast Reverse Path Forwarding (URPF) , Unicast Storm Control , VLAN support | |||
Form Factor: | Desktop , Rack-mountable | |||
Jumbo Frame Support: | 9216 bytes | |||
Manageable: | Yes | |||
Max Units In A Stack: | 8 | |||
PoE Budget: | 370 W | |||
Ports Qty: | 48 | |||
Power Over Ethernet (PoE): | PoE+ | |||
Remote Management Protocol: | CLI , HTTP , RMON 1 , RMON 2 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet | |||
Stackable: | Stackable | |||
Status Indicators: | Link activity , PoE , Port duplex mode , Port transmission speed , RPS (Redundant Power Supply) , Status , System | |||
Subcategory: | Network hubs and switches | |||
Subtype: | Gigabit Ethernet | |||
Type: | Switch | |||
|
||||
Performance | ||||
Type: | Switching capacity | |||
Value: | 216 Gbps | |||
|
|
|
||
Type: | Forwarding performance (64-byte packet size) | |||
Value: | 130.9 Mpps | |||
|
||||
Ports | ||||
Qty: | 48 | |||
Type: | 10/100/1000 (PoE+) | |||
|
||||
Ports (2nd) | ||||
Qty: | 2 | |||
Type: | SFP+ | |||
|
||||
Power Device | ||||
Features: | Redundant Power System (RPS) connector | |||
Frequency Required: | 50/60 Hz | |||
Nominal Voltage: | AC 120/230 V | |||
Power Consumption Operational: | 45.7 Watt | |||
Power Redundancy: | Optional | |||
Type: | Internal power supply | |||
|
||||
Processor | ||||
Clock Speed: | 600 MHz | |||
|
||||
RAM | ||||
Installed Size: | 512 MB | |||
|
||||
Service | ||||
Support Details Full Contract Period: | Lifetime | |||
Support Details Service Included: | Advance parts replacement | |||
Support Details Type: | Limited warranty | |||
|
|
|
||
Support Details Full Contract Period: | 90 days | |||
Support Details Service Included: | Consulting | |||
Support Details Type: | Technical support | |||
|
||||
Service & Support | ||||
Type: | Limited lifetime warranty | |||
|
||||
Service & Support Details | ||||
Response Time: | Next business day | |||
|
||||
Slot Provided | ||||
Free Qty: | 1 | |||
Total Qty: | 1 | |||
Type: | Stacking Module slot | |||
|
||||
Software | ||||
Type: | Cisco IOS LAN Base |
