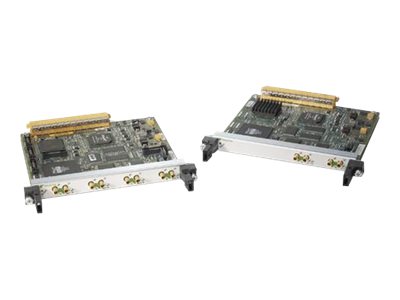

Cisco Clear Channel Shared Port Adapter Version 2 – expansion module – T3/E3 x 2
Cisco Clear Channel Shared Port Adapter Version 2 – Expansion module – T3/E3 x 2 – T-3/E-3 – for Cisco 76XX; ASR 10XX, 90XX, 99XX
49,799.00 د.إ
The Cisco Clear Channel T3/E3 SPA Version 2 is designed to provide direct connectivity to T3/E3 lines for full-duplex communications at the T3 rate of 44.736 MHz or E3 rate of 34.368 MHz. The ports are configurable as either all T3 or all E3. To support the widest range of operational environments and to offer the greatest flexibility in provisioning clear channel T3/E3 connections, the Cisco Clear Channel T3/E3 SPA Version 2 takes a groundbreaking step and bring together proprietary subrate and scrambling features of T3/E3 DSU vendors Quick Eagle Networks (formerly Digital Link), Larscom, ADC Kentrox, Adtran, and Verilink. Subrate support in the Cisco Clear Channel T3/E3 SPAs Version 2 maximizes the application of these products in service provider environments for tiered T3 services. By simultaneously supporting interoperability with a wide range of third-party DSU vendors, the Cisco Clear Channel T3/E3 SPA Version 2 offers the flexibility to support installed equipment without committing customers to a proprietary solution.
The Cisco Clear Channel T3/E3 SPA Version 2 is hot-swappable and support service-transparent online insertion and removal (OIR), allowing removal of the SPA without affecting the interface processor and other SPAs.
| General | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Ports | T3/E3 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, PPP |
| Data Transfer Rate | 44.736 Mbps |
| Remote Management Protocol | SNMP |
| Line Rate | T-3/E-3 |
| Line Coding Format | HDB3, B3ZS |
| Features | Full duplex capability |
| Compliant Standards | ANSI T1.102, ANSI T1.404, ANSI T1.107 |
| Expansion / Connectivity | |
| Interfaces | 2 x T3/E3 |
| Miscellaneous | VCCI, EN 60950, EN55022, ICES-003, IEC 60950, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, AS/NZS 3548 |
| Dimensions & Weight | |
| Width | 6.8 in |
| Depth | 7.3 in |
| Height | 0.8 in |
| Weight | 11.99 oz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% |
| Compatibility Information | Designed For |
| Cisco 7603 | |
| Cisco 7603-S | |
| Cisco 7604 | |
| Cisco 7604 Security Bundle | |
| Cisco 7606 | |
| Cisco 7606 Security Bundle | |
| Cisco 7606-S | |
| Cisco 7609 | |
| Cisco 7609 Security Bundle | |
| Cisco 7609-S | |
| Cisco 7613 | |
| Cisco 7613 Security Bundle | |
| Cisco 7613-S | |
| Cisco ASR 1001 | |
| Cisco ASR 1001-HX | |
| Cisco ASR 1001-X | |
| Cisco ASR 1002 | |
| Cisco ASR 1002 BB Bundle | |
| Cisco ASR 1002 FPI Bundle | |
| Cisco ASR 1002 HA Bundle | |
| Cisco ASR 1002 Security HA Bundle | |
| Cisco ASR 1002 Security VPN+FW Bundle | |
| Cisco ASR 1002 Special Bundle | |
| Cisco ASR 1002 VPN and Firewall Bundle | |
| Cisco ASR 1002 VPN Bundle | |
| Cisco ASR 1002-F | |
| Cisco ASR 1002-F Security HA Bundle | |
| Cisco ASR 1002-F VPN and Firewall Bundle | |
| Cisco ASR 1002-F VPN Bundle | |
| Cisco ASR 1002-HX | |
| Cisco ASR 1002-X | |
| Cisco ASR 1002-X 10G HA Bundle | |
| Cisco ASR 1002-X AX AVC AES vWAAS Bundle | |
| Cisco ASR 1002-X Base Bundle | |
| Cisco ASR 1002-X HA Bundle | |
| Cisco ASR 1002-X Security + High Availability Bundle | |
| Cisco ASR 1002-X Security Bundle | |
| Cisco ASR 1002-X Security HA Bundle | |
| Cisco ASR 1002-X Special Bundle | |
| Cisco ASR 1002-X VPN and Firewall Bundle | |
| Cisco ASR 1002-X VPN Bundle | |
| Cisco ASR 1004 | |
| Cisco ASR 1004 FPI Bundle | |
| Cisco ASR 1004 HA Bundle | |
| Cisco ASR 1004 Security HA Bundle | |
| Cisco ASR 1004 VPN and Firewall Bundle | |
| Cisco ASR 1004 VPN Bundle | |
| Cisco ASR 1006 | |
| Cisco ASR 1006 BB Bundle | |
| Cisco ASR 1006 FPI Bundle | |
| Cisco ASR 1006 HA Bundle | |
| Cisco ASR 1006 Security HA Bundle | |
| Cisco ASR 1006 VPN and Firewall Bundle | |
| Cisco ASR 1006 VPN Bundle | |
| Cisco ASR 1006-X | |
| Cisco ASR 1009-X | |
| Cisco ASR 1013 | |
| Cisco ASR 9001 | |
| Cisco ASR 9001-S | |
| Cisco ASR 9006 | |
| Cisco ASR 9006 Chassis | |
| Cisco ASR 9006 DC Chasis V2 | |
| Cisco ASR 9006 with PEM Version 2 | |
| Cisco ASR 9010 | |
| Cisco ASR 9010 for High Scale | |
| Cisco ASR 9010 with PEM Version 2 | |
| Cisco ASR 9901 | |
| Cisco ASR 9904 | |
| Cisco ASR 9906 | |
| Cisco ASR 9906 TH | |
| Cisco ASR 9910 | |
| Cisco ASR 9910 Chassis | |
| Cisco ASR 9912 | |
| Cisco ASR 9912 DC Chassis V2 | |
| Cisco ASR 9912 TH | |
| Cisco ASR 9922 | |
| Cisco ASR 9922 Chassis with PEM Version 2 |
