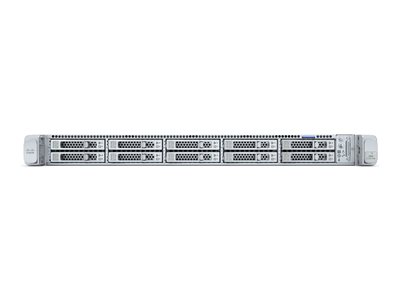

Cisco Compute Hyperconverged with Nutanix – rack-mountable – no CPU – 0 GB – no HDD
Cisco Compute Hyperconverged with Nutanix – Server – rack-mountable – 1U – 2-way – no CPU – RAM 0 GB – NVMe – hot-swap 2.5″ bay(s) – no HDD – G200e – monitor: none
18,499.00 د.إ
Cisco Compute Hyperconverged with Nutanix accelerates and simplifies the delivery of infrastructure and applications, at a global scale, through excellent cloud-operating models, great flexibility, and enhanced support and resiliency capabilities so you can power your hybrid multicloud future with a complete hyperconverged solution.
Cisco Compute Hyperconverged C220 M6 Node family delivers performance, flexibility, and resiliency in a small footprint. Physically, nodes are deployed into clusters, with a cluster consisting of three or more Cisco Compute Hyperconverged C220 M6 All-Flash or C220 M6 All-NVMe nodes. These are integrated into a single system by a pair of Cisco UCS 6400 Series fabric interconnects, creating clusters that support general-purpose deployments and mission-critical high-performance environments.
| General |
|---|
| Type | Server |
| Product Form Factor | Rack-mountable – 1U |
| Built-in Devices | Status LED, 8 hot-swap fans |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 10 |
| Hot-Swap Bays Qty | 10 |
| Processor / Chipset |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621A |
| RAM |
| Installed Size | 0 GB / 4 TB (max) |
| Technology | DDR4 SDRAM – ECC |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 32 (empty) |
| Features | 8-channel memory architecture |
| Hard Drive |
| Type | No HDD |
| Optical Storage |
| Type | No optical drive |
| Monitor |
| Monitor Type | None |
| Graphics Controller |
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
| Networking |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | CLI |
| Remote Management Controller | Intel Baseboard Management Controller (BMC), Cisco Integrated Management Controller |
| Expansion / Connectivity |
| Bays | 10 (total) / 10 (free) x hot-swap NVMe |
| Slots | 1 PCIe 4.0 x16 – three-quarter-length, half-height (riser slot 1 only) |
| 1 PCIe 4.0 x16 – three-quarter-length, half-height (riser slot 2 only) |
| 1 PCIe 4.0 x16 – three-quarter-length, half-height (riser slot 3 only) |
| 1 PCIe 4.0 x16 – three-quarter-length, full-height (riser slot 1 only) |
| 1 PCIe 4.0 x16 – three-quarter-length, full-height (riser slot 2 only) |
| 1 (total) / 1 (free) x mLOM |
| Interfaces | 2 x USB 3.0 (2 rear) |
| 1 x VGA – DB-15 (1 rear) |
| 1 x – RJ-45 (1 rear) (RS-232) |
| 2 x LAN (10Gigabit Ethernet) – RJ-45 (2 rear) |
| 1 x management (NIC) – RJ-45 (1 rear) |
| 1 x KVM (1 in front) |
| Miscellaneous |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN35, Directive 2014/35/EU, Directive 2014/30/EU, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, ACPI 6.2, EN61000-3-3, EN 300386 |
| Power |
| Device Type | Power supply – hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Dimensions & Weight |
| Width | 16.9 in |
| Depth | 30 in |
| Height | 1.7 in |
| Environmental Parameters |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 – 90% RH (non-condensing) |
