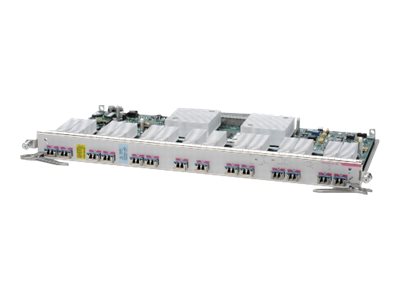

Cisco CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module – expansion module – 14 ports
Cisco CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module – Expansion module – 10 GigE – 10GBase-X – 14 ports
AED426,199.00
The Cisco CRS-3 carrier routing system offers industry-leading performance, advanced services intelligence, environmentally conscious design, and system longevity. Packet-based data communications are being replaced by video and rich media traversing the IP Next-Generation Network (NGN) in multiple directions, straining the architectural foundations of both public and private networks serving businesses and consumers. As part of the medianet, a media-aware Cisco IP NGN, the Cisco CRS-3 delivers continuous, always-on operations and scales easily from numerous single-chassis form factors to a massive multi-chassis system. Its design provides an industry-leading efficiency consuming lowest power, cooling and rack-space resources for an intelligent service-rich bandwidth capacity. The CRS-3 builds on the CRS-1 being backward and forward compatible, protecting existing and future investments for decades to come.
| General |
|---|
| Device Type | Expansion module – 14 ports |
| Form Factor | Plug-in module |
| Networking |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-X |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Remote Management Protocol | SNMP, CLI |
| Features | Flow control, VLAN support, Jumbo Frames support |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae <br> NEBS level 3, FCC Class A certified, EN 61000-3-2, EN50082, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, CISPR 22, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60825, IEC 60825-1, FDA, NEBS, CSA C22.2 No. 60950-1, EN 300 386 |
| Expansion / Connectivity |
| Interfaces | 14 x management – Ethernet 10GBase-X – XFP |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous |
| Dimensions & Weight | Width: 20.6 in <br> Depth: 11.2 in <br> Height: 1.8 in <br> Weight: 7.94 lbs |
| Environmental Parameters |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% (non-condensing) |
